Mitutoyo 975Mm 167-139

Product Code: 167-139

$344.28$312.98 Ex. GST

Product Code: 167-139 SKU 167-139 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

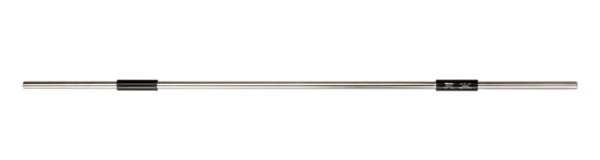

167-139 Mitutoyo Micrometer Standard: 975mm

The Mitutoyo 167-139 micrometer standard has the following specifications:

Length: 975mm
Accuracy: +/- .0205mm
Diameter: 11.9mm
Features:

Available in Inch and Metric lengths from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length

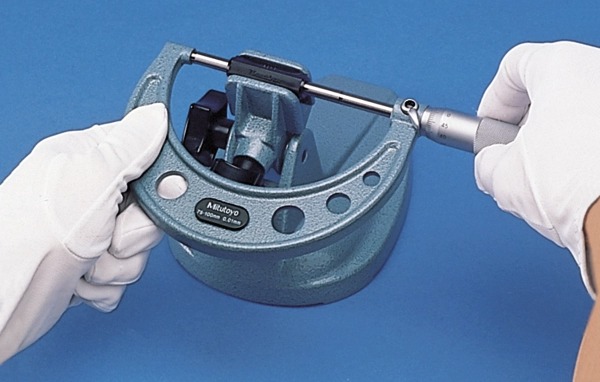

Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
Dimensions Length 97.5cm x Width cm x Depth cm
barcode
Additional Information

Delivered: In a wooden box
Inch-Metric: Metric
Length (L): 975 mm
Diameter (D): 11.9 mm
Accuracy: ±20.5 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish

Brand

Mitutoyo
