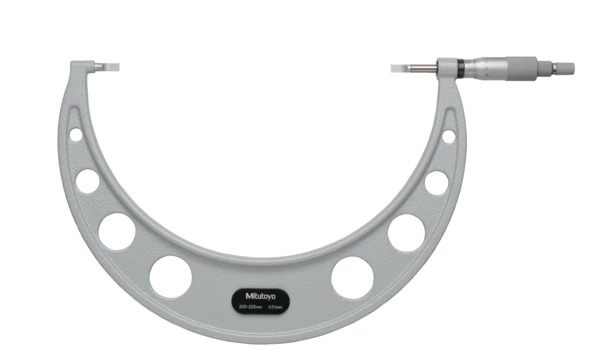

Mitutoyo BLADE MICROMETER 122-109-10

Product Code: 122-109-10

$711.08$646.44 Ex. GST

Product Code: 122-109-10 SKU 122-109-10 Categories ,
Mitutoyo BLADE MICROMETER 122-109-10

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:
Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Additional information

Weight 1.3000 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, spanner, setting standard
Inch-Metric: Metric
Range: 200 – 225 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±5 µm
Parallelism: 5 µm
Measuring face: Carbide-tipped or hardened steel spindle and anvil
Anvil/Spindle: Type A, hardened steel t=0.75 mm
Measuring spindle: ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 3 – 8 N
Mass: 1300 g

Brand

Mitutoyo
