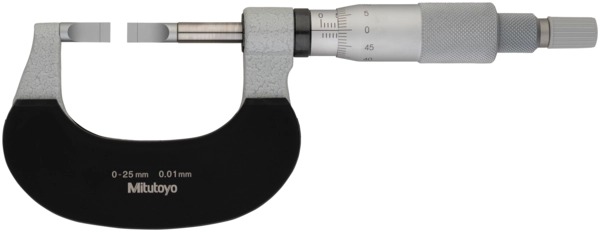

Mitutoyo BLADE MICROMETER 122-111-10

Description

The Mitutoyo 122-111-10 Blade Micrometer has the following specifications:

Range: 0-25mm
Graduation: 0.01mm
Accuracy: ±3um
Remarks: Type B
Mass (g): 260

Features:
The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
With ratchet stop for constant force.
Non-slip grip finish (digital models).
Speedy spindle feed of .4″/10mm /rev. (Quickmike type).
With a standard bar except 0 – 1″ and 0 -25mm model.
Supplied in fitted plastic case.

Technical Data:
Accuracy: Refer to the list of specifications
