Mitutoyo BLADE MICROMETER 122-116

Product Code: 122-116

$840.58$764.16 Ex. GST

Product Code: 122-116 SKU 122-116 Categories BLADE MICROMETER, MEASUREMENT

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:
Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways a.s.o.
Non-rotating spindle.

Additional information

Weight	2.0200 kg
barcode

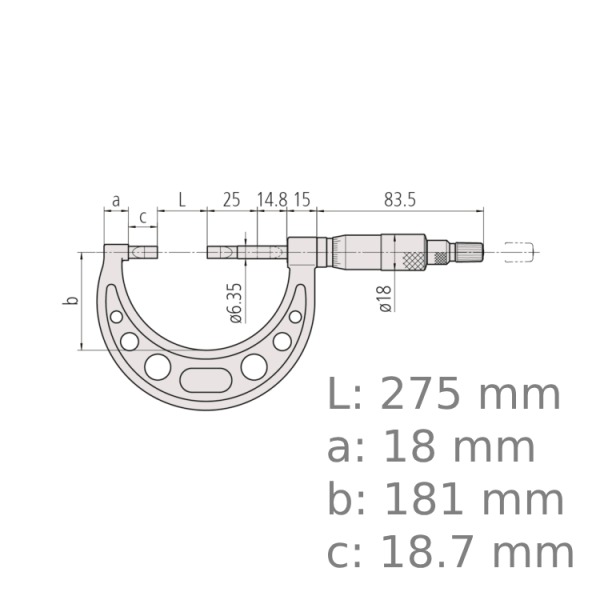

Additional Information	Digital/Analog: Analog Range: 275 to 300 mm Accuracy: ±6 µm Mass: 2020 g Graduation: 0.01 mm Parallelism: 3 µm for models up to 75 mm, (3+L/100) µm for models over 75 mm, L=max. Range (mm) Measuring Spindle: ø8 mm, non-rotating, spindle pitch 0.5 mm
