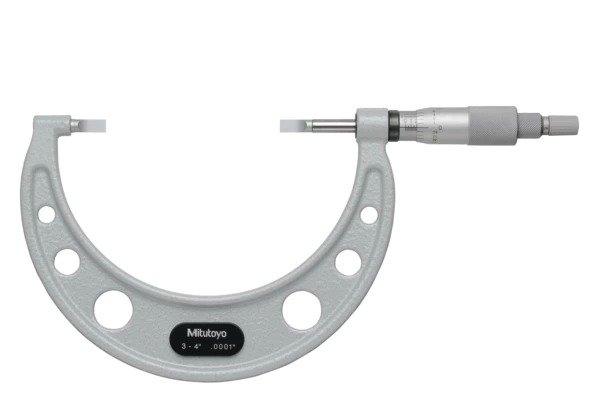

Mitutoyo BLADE MICROMETER 122-128-10

Description

The Mitutoyo 122-128-10 Blade Micrometerwith non-rotating spindle has the following specifications:

Range: 3-4″
Accuracy: +/- .00015″
Graduations: .0001″
Remarks: Type A Anvils
Mass(g): 525

Features:
Non rotating spindle
Available in Metric and Inch models
Ratchet thimble allows for easy single-hand use when measuring objects
Elimination of overspeed errors provides a higher measurement reliability and repeatability
The anvil and the spindle have a blade for measuring the groove diameter of shafts, key ways, and other hard-to-reach areas
Knurled friction thimbles provide quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Sizes over 0-1″ include a micrometer standard
Supplied in fitted plastic case
The Mitutoyo 122-128-10 non-rotating spindle type blade micrometer quickly measures grooves, keyways and hard-to-reach areas with high accuracy. Available in inch or metric units. The Mitutoyo mechanical blade micrometer with non-rotating spindle utilizes a blade anvil and spindle for measuring difficult pieces such as groove diameters of shafts and keyways. The non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Technical Data:
Technology: Mechanical
SPC Output: No
Ratchet/Thimble: Ratchet Stop
