Mitutoyo BLUETOOTH TM 264-626

Product Code: 264-626

$399.88$363.53 Ex. GST

Product Code: 264-626 SKU 264-626 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

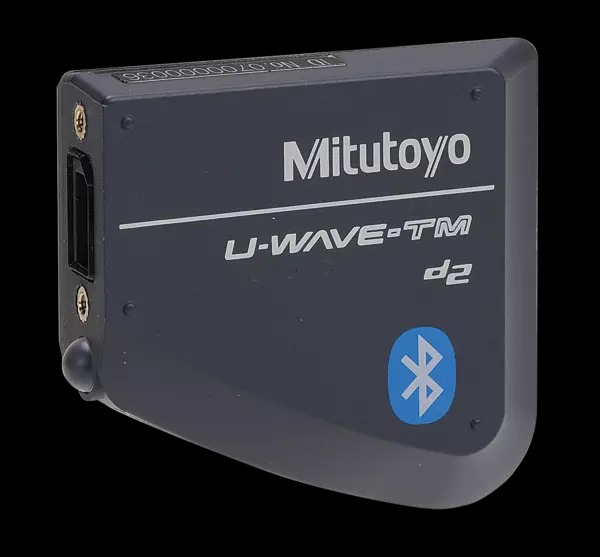

This Mitutoyo U-WAVE-T wireless transmitter offers the following features:

Approx. 16 m (within visible range)
Communication frequency: 2.4GHZ wireless system for reliable and secure data transmission
Transmitter confirms data transfer by a red/green LED signal
One PC can connect up to seven units with Mitutoyo U-WAVE Bluetooth
IP67: High level of dust and liquid protection

Additional information

Weight 0.0200 kg
Dimensions Length 4.19cm x Width 3.88cm x Depth 1.29cm
barcode
Additional Information

Wireless communication protocol: Bluetooth 4.2 Low Energy
Modulation method: FH-SS (Frequency Hopping Spread Spectrum Method)
Type: U-WAVE-TMB (U-WAVE fit Bluetooth)
Data reception indication: LED (green, red, orange)
Communication distance: Approx. 16 m (within visible range), 10 m (factory environment)
Power supply: Battery CR2032 x 1 pcs.
Communication with measuring tool: Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency: 2.4 GHz band
Transmission output: 3.2 mW (5 dBm) or below (class 2)
OS compatibility: Windows 10, Android, iOS
Battery life: WIN 10: approx. 3 months
Dimensions (WxDxH): 41.9 x 38.8 x 12.9 mm
Delivered: Including screwdriver, CR 2032 battery, key for battery case
Mass: 20 g

Brand

Mitutoyo
