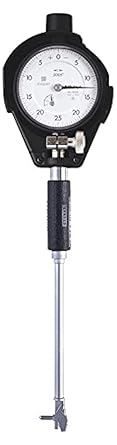

Mitutoyo Bore Gage B 511-207

Description

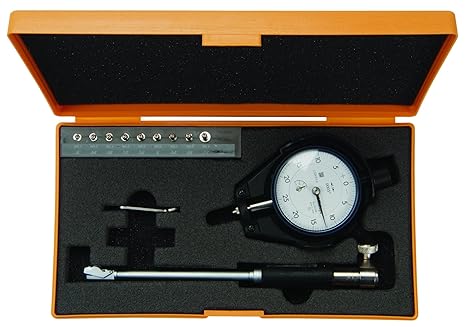

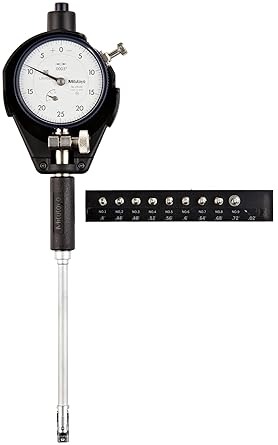

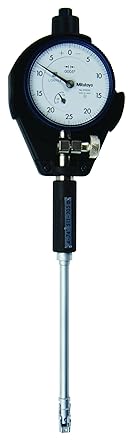

The Mitutoyo 511-207 Dial Bore Gauge for Small Holes has a measurement range of 0.4 to 0.75″ and is accurate to or – 0.0002″. It is precise to 0.0005″. This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points offer extended wear and improved abrasion resistance. A rugged cover protects the dial indicator. Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores. Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems

Total measurement range of 0.4 to 0.75″ and accurate to + or – 0.0002″
Gradient spacing of 0.0005″
Rugged cover for dial indicator protection
Two-point contact for detection of geometry problems such as ovality and taper
Carbide-tipped contact points for extended wear and improved abrasion resistance
