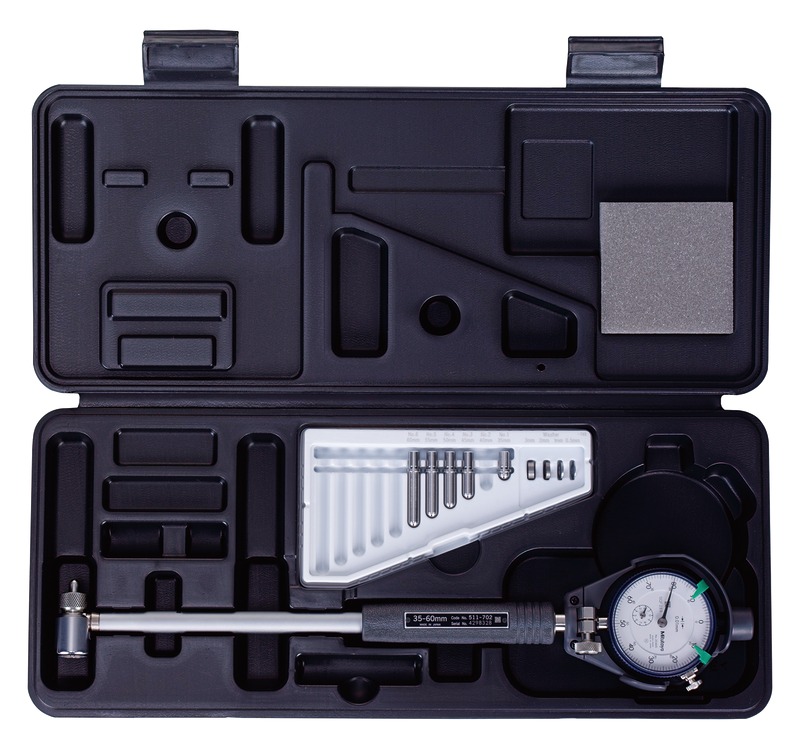

Mitutoyo Bore Gage B 511-724

Product Code: 511-724

$676.74$615.22 Ex. GST

Product Code: 511-724 SKU 511-724 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Offers a longer plunger stroke while maintaining original accuracy. The contact point is made of carbide, which ensures long-term durability and resistance to wear. By expanding the grip size, this model minimises the impact of heat from the operator’s hand by 50%. Making the grip hollow-structured allows for high-accuracy measurement to be maintained. Interchangeable 0.5 mm thick washers are included as standard equipment to allow for small step adjustments. For measuring deep holes, optional extension rods can be added. For proper setting of the gauge before measurement, an optional inside-length standard, such as a setting ring or Inside Micro Checker, is required.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Data Output: No
Display Type: Non-digital
Accuracy: +/- 7 µm
Range: 100-160 mm
SKU: 511-724
Measuring Units: Millimetre
Graduations: 0.001 mm
Probe Depth: 150 mm

Brand

Mitutoyo
