Mitutoyo Bore Gage B 511-744

Product Code: 511-744

$743.93$676.30 Ex. GST

Product Code: 511-744 SKU 511-744 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

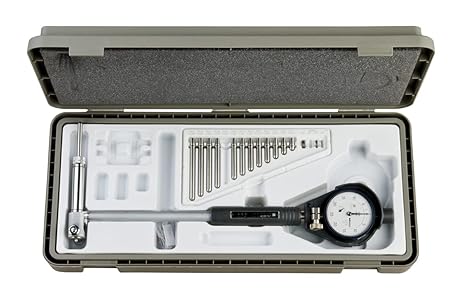

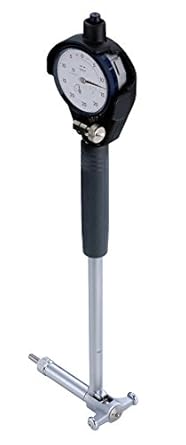

A Mitutoyo dial bore gauge designed for ID measurement over a wide range using interchangeable anvils. Tungsten carbide contact points ensure high durability and wear resistance. High-accuracy measurement is aided by a large grip with a sponge-like structure that reduces heat transfer from the operator‰Ûªs hand. Optional extension rods can be attached for measuring inside deep holes.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Inch-Metric: Inch
Range: 4 – 6.5 "
Graduation: 0.0005"
Stroke of contact point: 18 – 60 mm: 1.2 mm, 50 – 400 mm: 1.6 mm
Measuring depth: 6"
No. Dial Indicator: 2922AB
Number of anvils: 13
Accuracy: 2 µm
Repeatability: 0.5 µm
Digital/Analog: Analog

Brand

Mitutoyo
