Mitutoyo BORE GAUGE 511-203-20

Product Code: 511-203-20

$757.08$688.25 Ex. GST

Product Code: 511-203-20 SKU 511-203-20 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

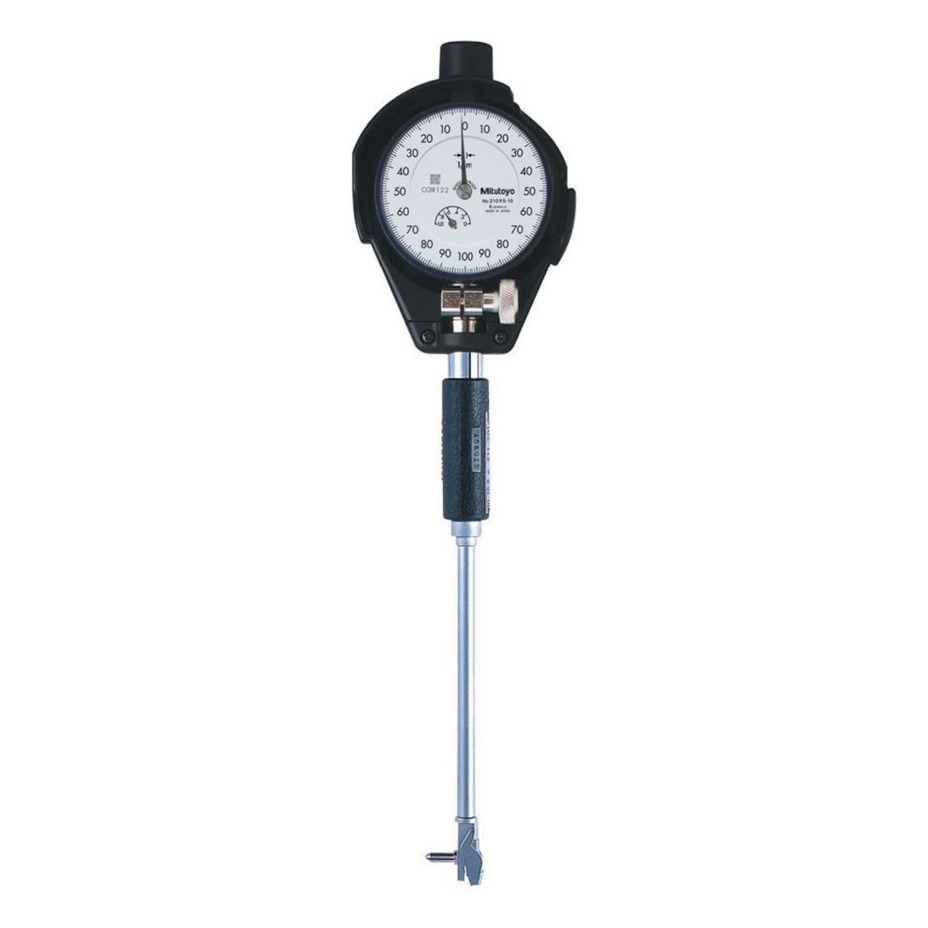

These are bore gauges that automatically self-centre via a centring bridge.
They offer you the following benefits:
A long plunger stroke gives you amazing accuracy.
Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.

Additional information

Weight 0.2680 kg
barcode
Additional Information

Inch-Metric: Metric
Digital/Analog: Analog

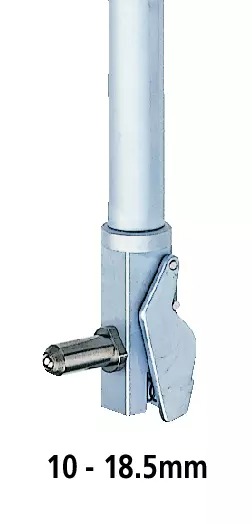

Range: 10 – 18.5 mm
Graduation: 0.001 mm
Stroke of Contact Point: 0.6 mm
Measuring Depth: 100 mm
No. Dial Indicator: 2109AB-10
Number of Anvils: 9
Accuracy: 5 µm
Repeatability: 2 µm
Measuring Force: ≤2 N

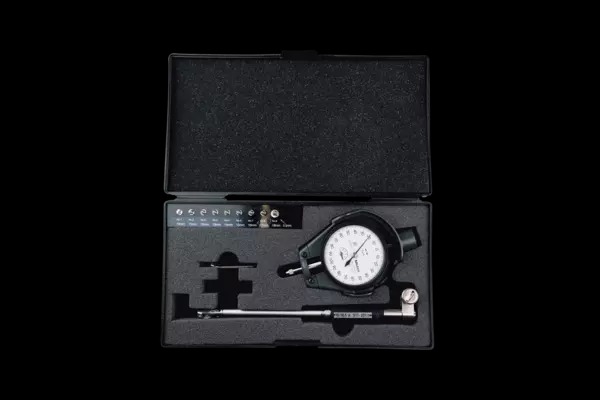

Delivered: In a box with bore gauge 511-201, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 9 anvils, 1 interchangeable washer
Mass: 268 g
