Mitutoyo BORE GAUGE 511-806

Description

The Mitutoyo 511-806 dial bore gage with micrometer head has the following specifications:
Range: 250-400mm
Graduations: No Indicator Included
Stem Diameter: 8mm
Micrometer Head Travel: 25mm
Sub Anvil: 25mm, 50mm, 50mm

Features:
Does not include a Mitutoyo Dial Indicator
Inch models have a graduation option of .0005″ and .0001″
Optional extension rods are available to measure deeper bores and holes
Large, newly designed hollow grips are easier to hold and reduce heat transfer from the operator for better accuracy
Models with dial indicators are fully protected by a rugged cover
Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
Includes various anvils and spacers depending on size of gage ordered

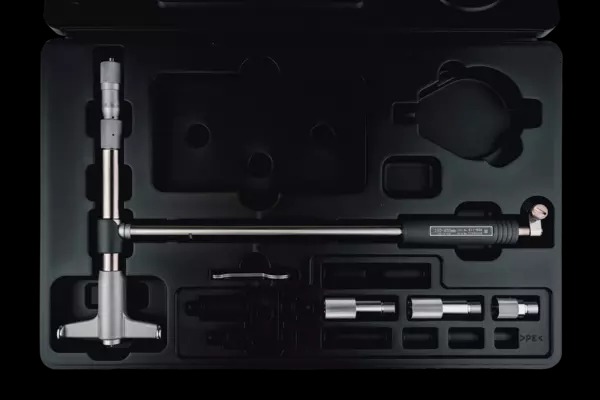

Supplied in a fitted plastic case
The Mitutoyo 511-806 bore gage with micrometer head and interchangeable anvils greatly expand the gage’s measurement range with high accuracy. The Mitutoyo bore gage with micrometer head (no indicator) delivers a wide range of bore measurement capabilities at high accuracy to 2µm. Interchangeable anvils constructed of alloy steel attach to the micrometer head for accurate dimensional setting. The anvils feature a carbide-tipped ball for better measurement reliability and longevity.

Technical Data:
Technology: Mechanical
Contact Point: Carbide ball
Units: Metric
With Dial Gage Protective Cover (21DZA000): No
