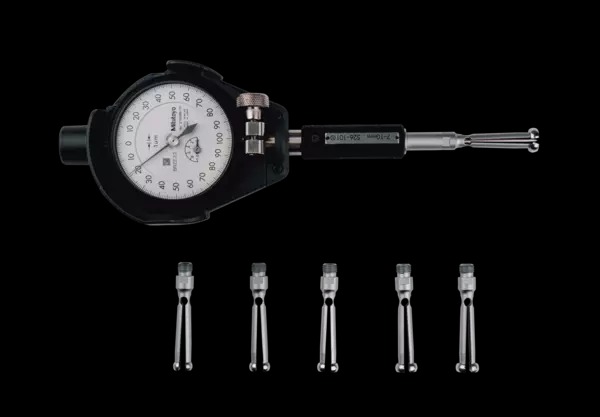

Mitutoyo BORE GAUGE 526-124-20

Description

The Mitutoyo 526-124-20 Extra Small Hole Dial Bore Gage has the following specifications:
Measuring Range: 7-10mm
Graduations: .001mm
Number of Anvils: 6
Number of Needles: 1
Probe depth (D): 56mm

Features:
Available in Metric or Inch models
Each bore gage model comes with a set of different anvil sizes

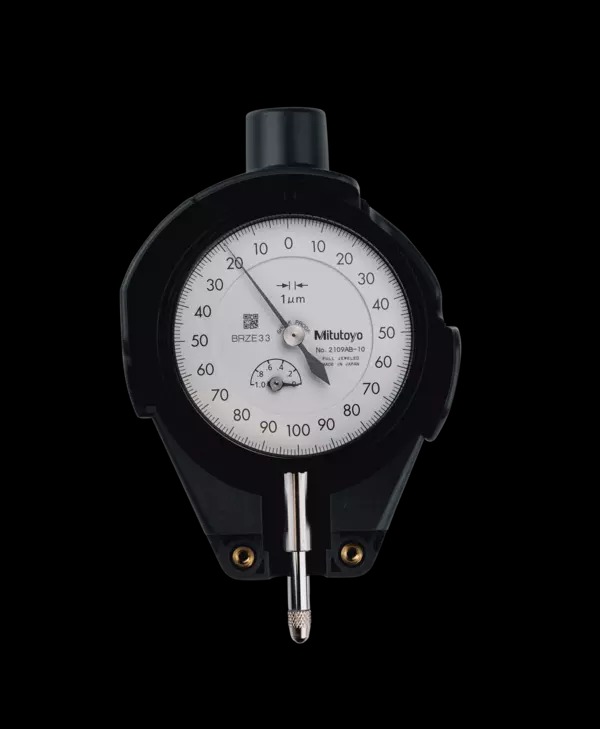

Models with dial indicators are fully protected by a rugged cover
Gage stem diameter is .375″ (8mm for metric models)
Interchangeable anvils are made of stainless steel for added accuracy and durability
Supplied in a plastic case
Optional stand (215-120-10) is available for efficient measurement of multiple small holes.
The Mitutoyo bore gages for extra small holes converts the radial displacement of the split-ball contact to axial displacement of the measuring rod for highly accurate measurements of holes as small as .037” in diameter. The Mitutoyo extra small hole bore gage features a split-ball design with stainless steel contact points to measure a hole’s inside diameter and identify out-of-roundness issues with an accuracy to +/-.00016″/.004mm. These bore gages come in various measuring ranges and are available with or without a Mitutoyo Dial Indicator.
