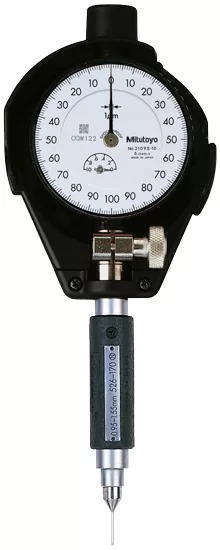

Mitutoyo Bore Gauge 526-166

Product Code: 526-166

$4,858.77$4,417.06 Ex. GST

Product Code: 526-166 SKU 526-166 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

These Bore Gages measure the diameters of small holes. The radial displacement of split-ball contact is converted to axial displacement of measuring rod, which is shown on the dial indicator.

Features:
These Bore Gages measure diameters of small holes
The radial displacement of split-ball contact is converted to axial displacement of measuring, which is shown on the dial indicator rod
With 2923SB-10

Additional information

Weight 0.0000 kg
barcode
Additional Information

Range: (0.059 to 0.156)”
Graduation: 0.0001″
Accuracy: 0.00016″
Indication Stability: 0.00008″
No. of Anvils: 9
No. of Needles: 2
Probe Depth: 0.68″, 0.89″
Gauge Stem: 0.375″

Brand

Mitutoyo
