The Mitutoyo 568-926 Borematic Snap Open Bore Gage has the following specifications:
Range: 25-50mm
Resolution: .001mm
Interchangeable Head Set
The Mitutoyo Borematic Absolute Digimatic Snap Bore Gages are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head.The snap open lever style readout creates better repeatability among users.The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

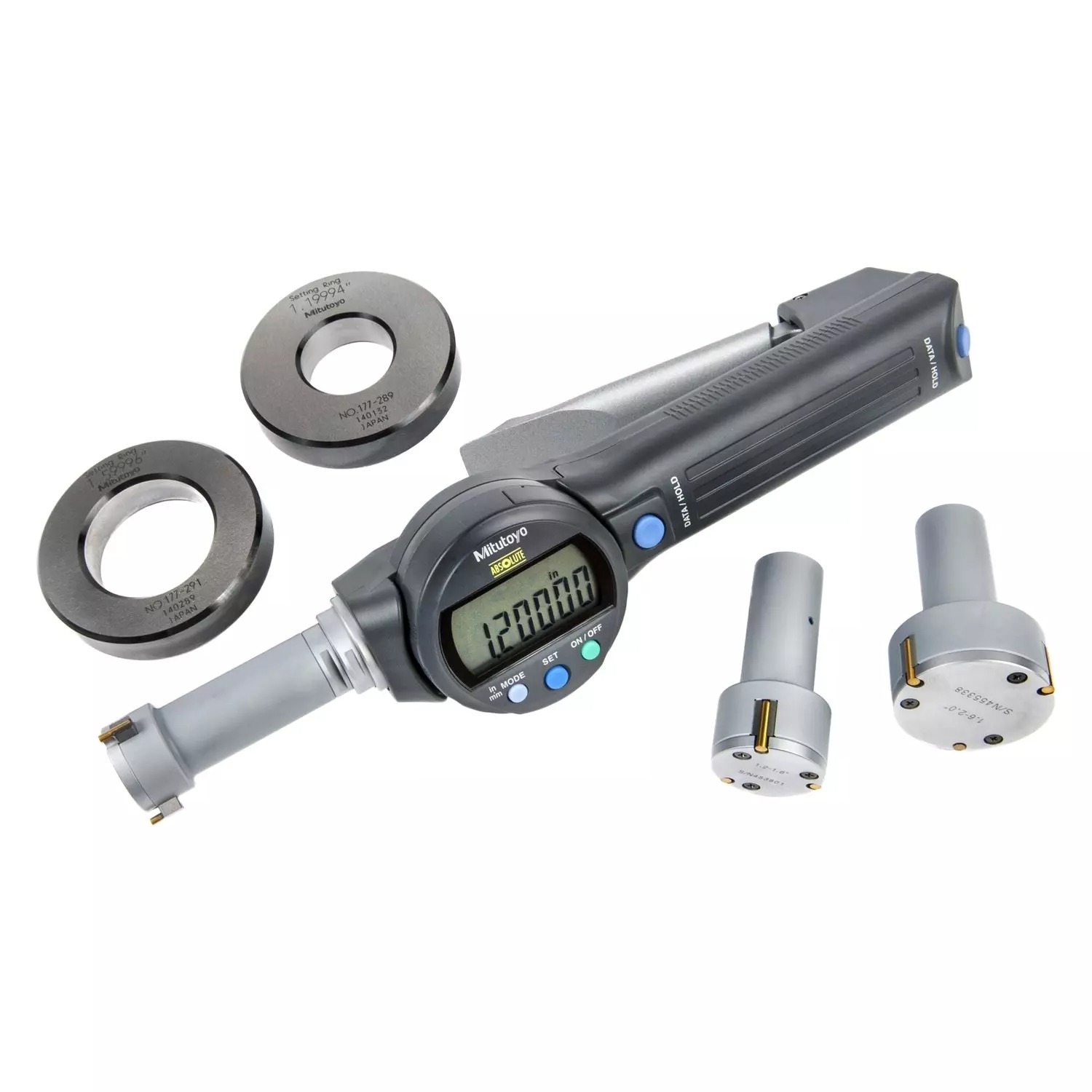

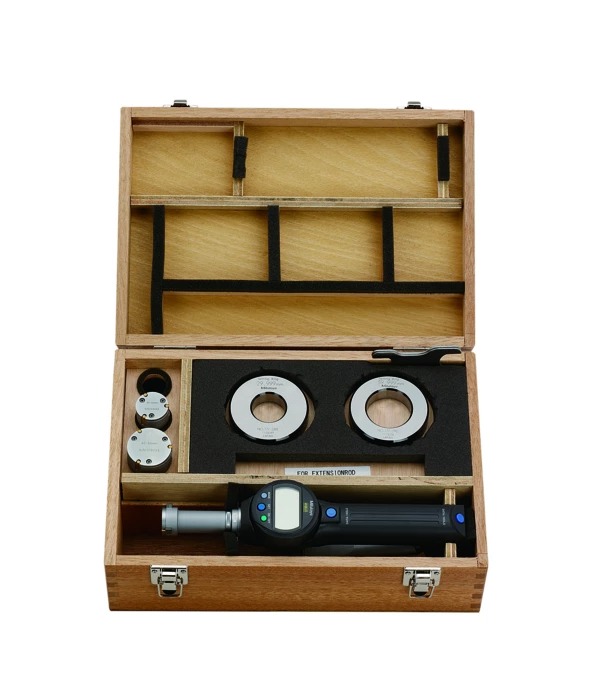

The Mitutoyo 568-926 borematic bore gage set includes the following :
Display Unit 568-014
04AZA729 Head assembly: 25-30mm
04AZA737 Head assembly: 30-40mm
04AZA738 Head assembly: 40-50mm
177-288 Setting Ring: 30mm
177-290 Setting Ring: 40mm
This Borematic Snap Open Bore Gage Set is the “interchangeable head” style. There is only one readout included in this set and the operator must interchange or swap out the different measuring heads. Each time a different head is installed on the readout, the operator must calibrate the new head in a setting ring prior to taking bore measurements.
| Weight | 0.9300 kg |
|---|---|
| Dimensions | Length 45.01cm x Width 10.01cm x Depth 10.01cm |
| barcode | |
| Additional Information | Features: Digital/Analog: Digital |
