Mitutoyo Borematic 25-50Mm 568-957

Description

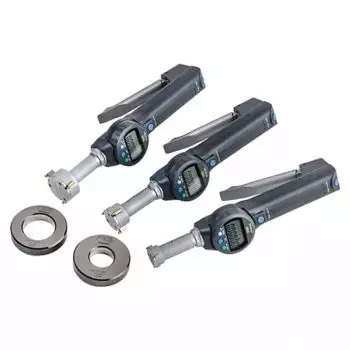

The Mitutoyo 568-957 borematic bore gage set includes the following :
Borematic Bore Gage: 25-30mm
Borematic Bore Gage: 30-40mm
Borematic Bore Gage: 40-50mm
177-139 Setting Ring: 25mm
177-290 Setting Ring: 40mm
This Borematic Set is the “complete unit” style. There is a readout for each of the three individual heads included in this set so the operator does not need to interchange or swap out the different measuring heads.

Features:
Available in Metric and Metric/Inch models
Optional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Contact points are constructed of TiN for impact resistance and better durability
Design allows for measurements closer to the bottom of blind bore holes
SPC output function offers quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides a higher measurement reliability and repeatability
Functions include Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/mm conversion (on inch/metric models only)

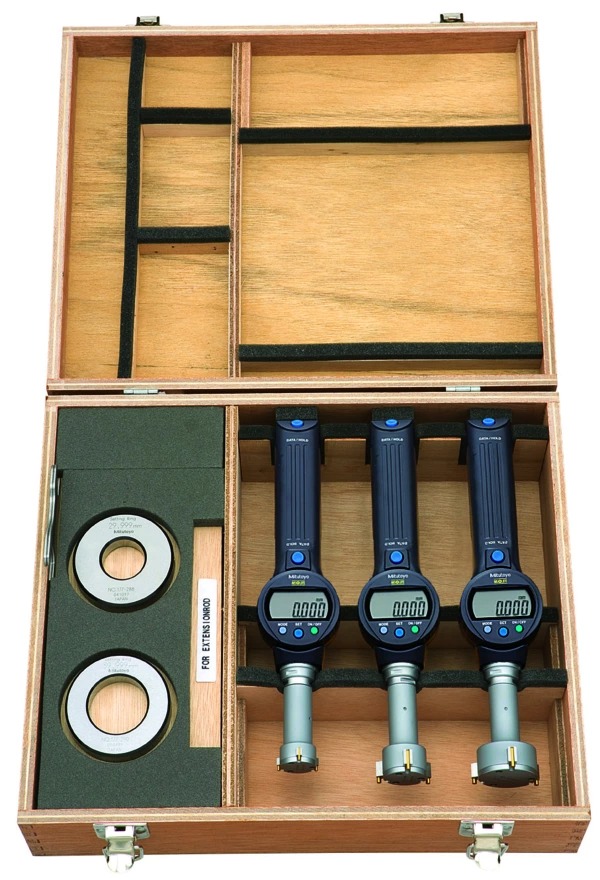

Supplied in fitted wooden case
The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point of the 568-957 is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary. The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation.
