$1,658.31$1,507.55 Ex. GST

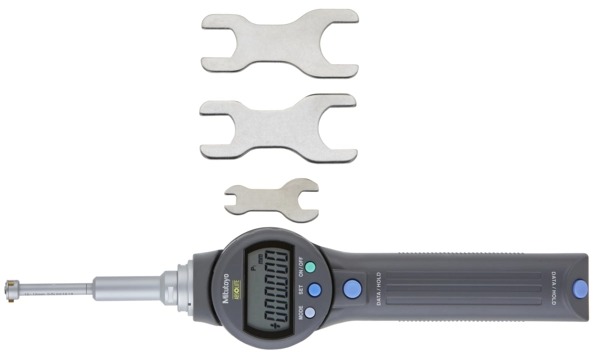

The 568-463 Mitutoyo Borematic Snap Bore Gage is made up of the following:
Large LCD Snap-Open style readout
Head assembly: 04AZB141
Please note that setting rings are not included in this kit.
Features:
Available in Metric and Metric/Inch models
Optional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Contact points are constructed of TiN for impact resistance and better durability
Design allows for measurements closer to the bottom of blind bore holes
SPC output function offers quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides a higher measurement reliability and repeatability
Functions include Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/mm conversion (on inch/metric models only)

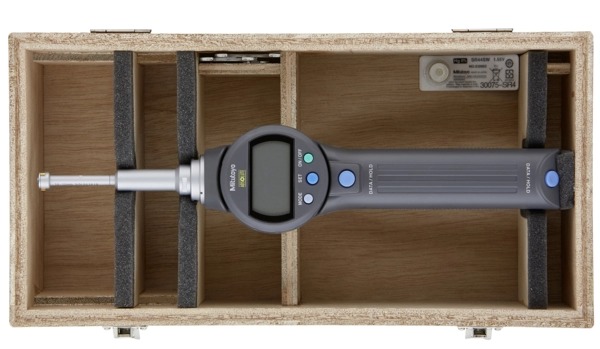

Supplied in fitted wooden case

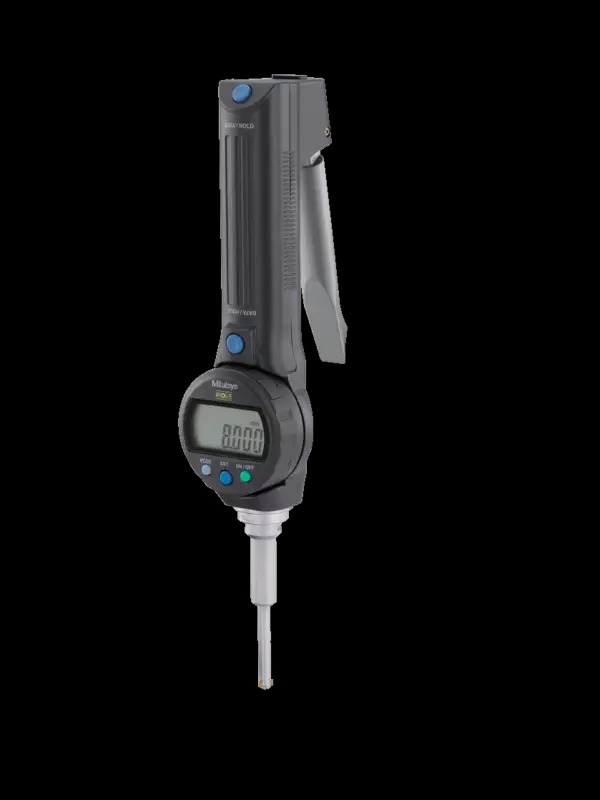

The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point of the 568-463 is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary. The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation.
| Weight | 0.4850 kg |
|---|---|
| barcode | |
| Additional Information | The Mitutoyo 568-463 Borematic Snap Open Bore Gage has the following specifications: Digital/Analog: Digital |
