$6,063.34$5,512.13 Ex. GST
The Mitutoyo 568-936 Borematic Snap Open Bore Gage has the following specifications:
Range: 2-4″/50.8-101.6mm
Resolution: .00005″/.001mm
Interchangeable Head Set
The Mitutoyo Borematic Absolute Digimatic Snap Bore Gages are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head.The snap open lever style readout creates better repeatability among users. The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

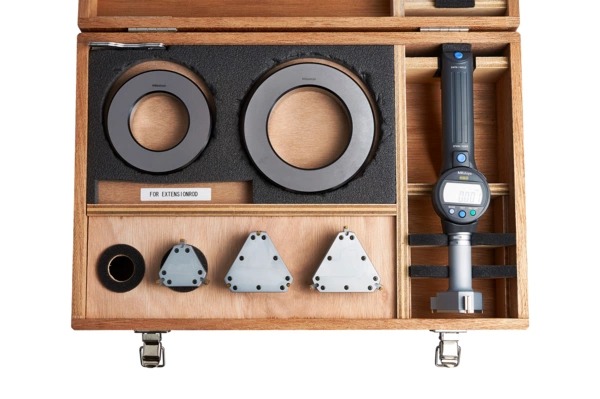

The Mitutoyo 568-936 borematic bore gage set includes the following :
Display Unit 568-015
04AZA754 Head assembly: 2.0-2.5″/50.8-63.5mm
04AZA755 Head assembly: 2.5-3.0″/63.5-76.2mm
04AZA756 Head assembly: 3.0-3.5″-76.2-88.9mm
04AZA757 Head assembly: 3.5-4.0″/88.9-101.6mm
177-315 Setting Ring: 2.50″
177-319 Setting Ring: 3.50″
This Borematic Snap Open Bore Gage Set is the “interchangeable head” style. There is only one readout included in this set and the operator must interchange or swap out the different measuring heads. Each time a different head is installed on the readout, the operator must calibrate the new head in a setting ring prior to taking bore measurements.
| Weight | 1.8500 kg |
|---|---|
| barcode | |
| Additional Information | Features: Digital/Analog: Digital |
