Mitutoyo Borematic 6-12Mm 568-955

Description

The Mitutoyo 568-955 Borematic Snap Open Bore Gage has the following specifications:

Range: 6-12mm
Resolution: .001mm
Complete Unit Set
The Mitutoyo Borematic Absolute Digimatic Snap Bore Gages are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head.The snap open lever style readout creates better repeatability among users.The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

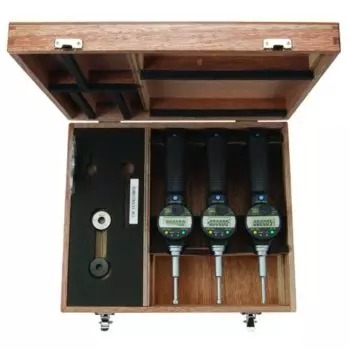

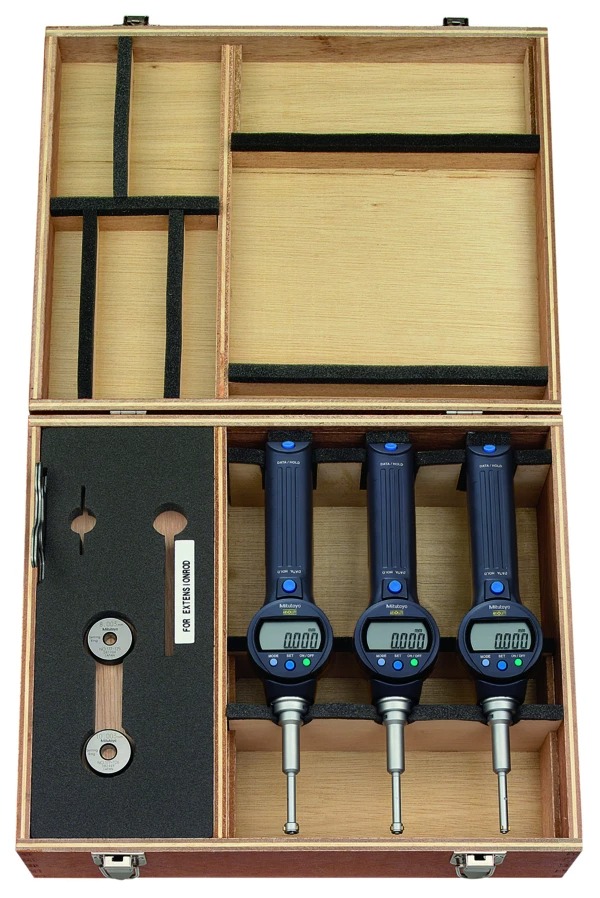

The Mitutoyo 568-955 borematic bore gage set includes the following :

Borematic Bore Gage: 6-8mm
Borematic Bore Gage: 8-10mm
Borematic Bore Gage: 10-12mm
177-125 Setting Ring: 8mm
177-126 Setting Ring: 10mm
This Borematic Set is the “complete unit” style. There is a readout for each of the three individual heads included in this set so the operator does not need to interchange or swap out the different measuring heads.

Additional information

Weight	1.4500 kg
barcode
Additional Information	Features: Available in Metric and Metric/Inch models Optional extension rod allows for measuring deep holes Optional setting rings for zero point adjustment are available Contact points are constructed of TiN for impact resistance and better durability Design allows for measurements closer to the bottom of blind bore holes SPC output function offers quick and easy data management in real time ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on Elimination of overspeed errors provides a higher measurement reliability and repeatability Functions include Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/mm conversion (on inch/metric models only) Supplied in fitted wooden case The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point of the 568-955 is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary. The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation. Digital/Analog: Digital Inch-Metric: Metric Range: 6 – 12 mm Digital step: 0.001 mm Individual ranges: 6-8 mm, 8-10 mm, 10-12 mm Display: LCD, character height: 11 mm Measuring face: Titanium coated carbide, taper: tungsten carbide Measuring method: 3-point Setting rings included: Ø8 mm (177-125), Ø10 mm (177-126) Power supply: 1 battery SR-44 Battery life: approx. 5000 hours ABS / INC (INC ZERO): Yes ON/OFF: Yes Function lock: Yes DATA (output with cable) / HOLD (display value): Yes 2 x PRESET: Yes Delivered: In a box with SR44 battery, spanner 04GAA857/04GAA858 (2 pcs.), setting rings (2 pcs.) Data output: Yes GO/±NG judgement: Yes Mass: 1450 g

Weight

1.4500 kg

barcode

Additional Information

Features:
Available in Metric and Metric/Inch models
Optional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Contact points are constructed of TiN for impact resistance and better durability
Design allows for measurements closer to the bottom of blind bore holes
SPC output function offers quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides a higher measurement reliability and repeatability
Functions include Zero/ABS Setting, GO/NO-GO judgment, power On/Off, and inch/mm conversion (on inch/metric models only)
Supplied in fitted wooden case
The Mitutoyo Borematic snap-on bore gage features an activation handle with a precision-balanced spring that smoothly retracts the anvils when pressed. Titanium Nitride (TiN) coated measuring contact points provide excellent durability and impact resistance which allows the instrument to measure to the bottom of a blind hole. With the ABSOLUTE encoder, once the origin point of the 568-955 is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Repeated origin setting (presetting) is no longer necessary. The Mitutoyo Borematic ABS Digimatic snap-open bore gage offers accurate bore measurements quicker and easier than ever before. Measurements are displayed on a large LCD readout that rotates 330° for easy reading in any instrument orientation.

Digital/Analog: Digital
Inch-Metric: Metric
Range: 6 – 12 mm
Digital step: 0.001 mm
Individual ranges: 6-8 mm, 8-10 mm, 10-12 mm
Display: LCD, character height: 11 mm
Measuring face: Titanium coated carbide, taper: tungsten carbide
Measuring method: 3-point
Setting rings included: Ø8 mm (177-125), Ø10 mm (177-126)
Power supply: 1 battery SR-44
Battery life: approx. 5000 hours
ABS / INC (INC ZERO): Yes
ON/OFF: Yes
Function lock: Yes
DATA (output with cable) / HOLD (display value): Yes
2 x PRESET: Yes
Delivered: In a box with SR44 battery, spanner 04GAA857/04GAA858 (2 pcs.), setting rings (2 pcs.)
Data output: Yes
GO/±NG judgement: Yes
Mass: 1450 g
