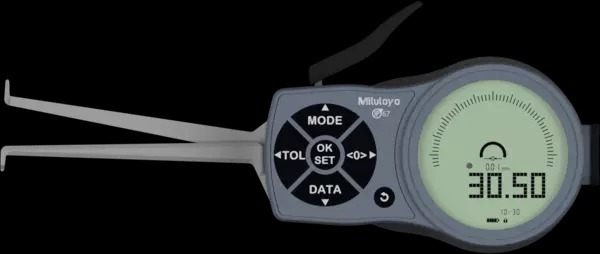

The Mitutoyo 209-936 Internal Digimatic Caliper Gage has the following specifications:
Range: 0.39-1.18″/10-30mm
Resolution: .0002″/0.005mm
Accuracy: .0015″/0.03mm
Measuring Contact: Ball .039″/1.0mm dia.
Features:

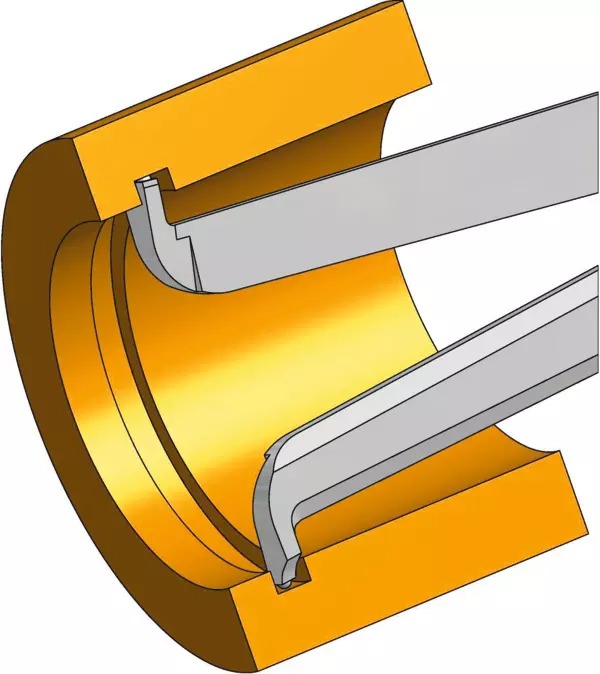

Versatile ID measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions. The Digimatic Caliper Gages provide error-free LCD readings as well as data output for SPC analysis.
Technical Data for the 209-936:
Resolution: .001″, .0005″, or .0002″ 0.01mm, 0.02mm, or 0.005mm
Display: LCD Analog / Digital
Power Supply: AA B
Battery (1pc)
Battery life: Approx. 350 hours
Measuring Force: 0.7 – 1.7N
Dust/Water protection level: IP67
Provided with inspection certificate.
Function:
Zeroset, Preset, Auto power OFF, Inch/Metric, conversion
Data hold, Max/Min value holding, Data output
| Weight | 0.2700 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Digital |
