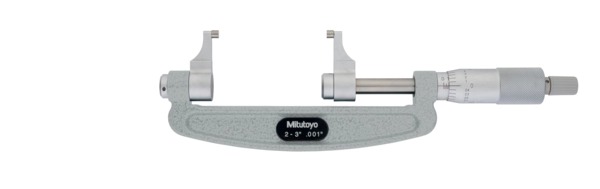

Mitutoyo Caliper Micrometer B 143-123

Description

143-123 Mitutoyo Caliper Type Micrometer: 2-3″

The Mitutoyo 143-123 Caliper Type Micrometer has the following specifications:

Range: 2-3″
Accuracy: +/- .00035″
Graduations: .001″
Mass(g): 280
Features:

Available in Metric or Inch models
Ratchet stop mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Carbide-tipped measuring tips resist wear for better accuracy over time
Frame has a baked enamel finish for more durability
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading

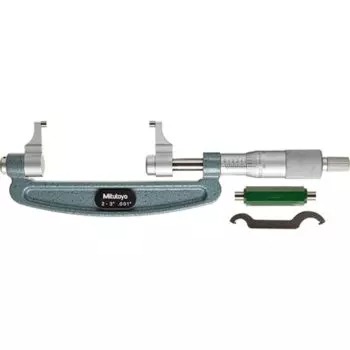

Includes a standard bar except for 0-25mm or 0-1″ models

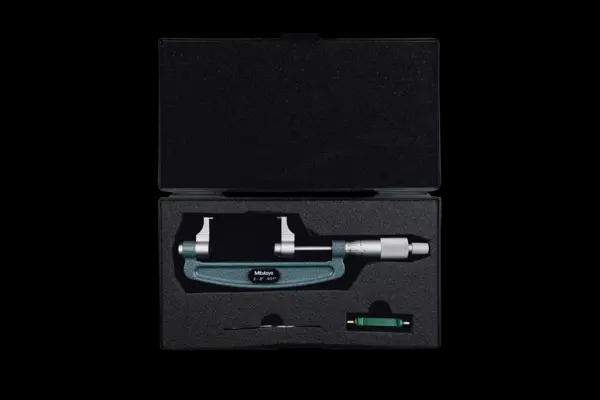

Supplied in a plastic, fitted case
The Mitutoyo 143-123 mechanical caliper type micrometer delivers precise measurements on recessed features which regular micrometers are unable to achieve. The Mitutoyo caliper type micrometer features jaws constructed of hardened steel with carbide measuring surfaces and a hardened steel spindle to take precise measurements on recessed features. The micrometer’s ratchet stop mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring extensive dimensions for easy one-handed measurements.
