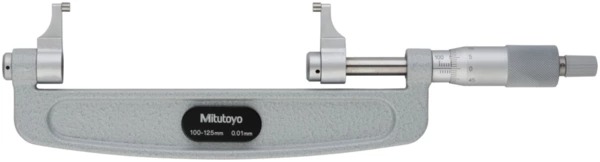

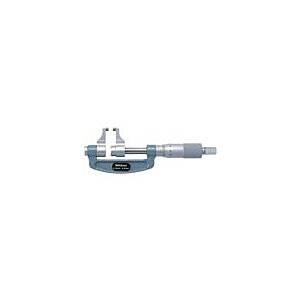

Mitutoyo Caliper Type Micrometer 100-12 143-105

Product Code: 143-105

$651.52$592.29 Ex. GST

Product Code: 143-105 SKU 143-105 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.

Additional information

Weight 0.4000 kg
barcode
Additional Information

Digital/Analog: Analog

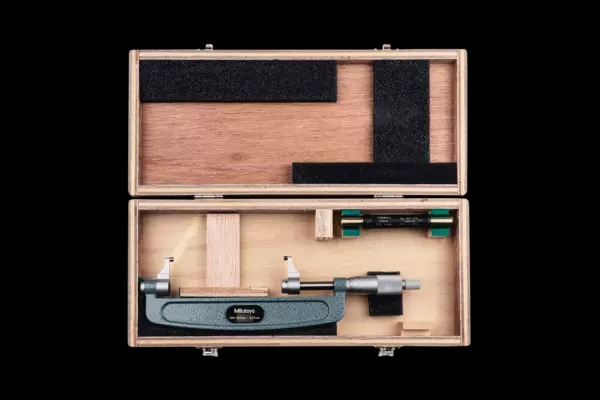

Delivered: Including box, spanner, setting standard
Inch-Metric: Metric
Range: 100 – 125 mm
Graduation: 0.01 mm
Max. Permissible Error (MPE): ±9 µm
Flatness: 0.3 µm
Parallelism: 4 µm
Measuring Face: Carbide-tipped, micro-lap finish
Measuring Spindle: ø8 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force: 1 – 6 N
Mass: 400 g

Brand

Mitutoyo
