Mitutoyo Caliper Type Micrometer 143-106

Product Code: 143-106

$752.53$684.12 Ex. GST

Product Code: 143-106 SKU 143-106 Categories Caliper Type Micrometer, MEASUREMENT

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

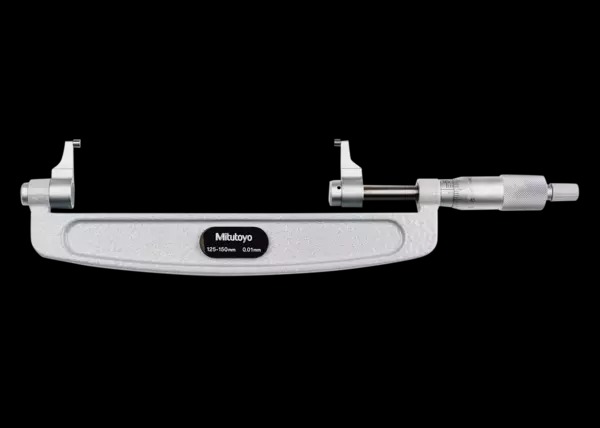

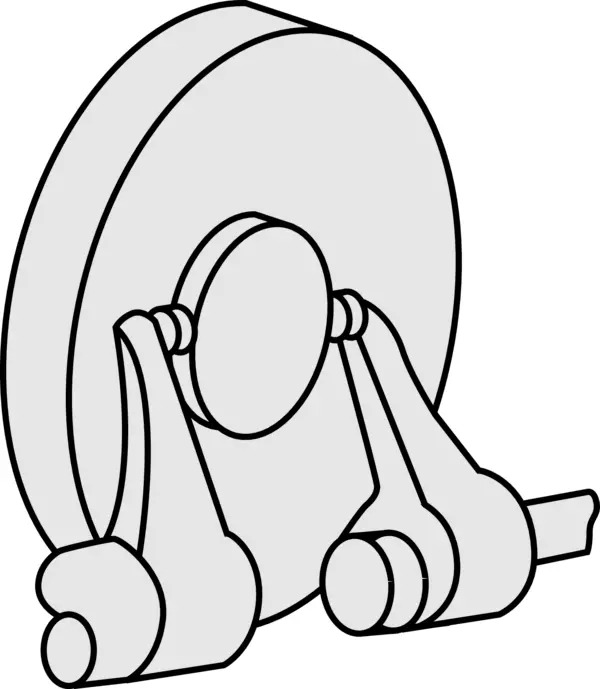

This Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.

Weight	0.4500 kg
barcode

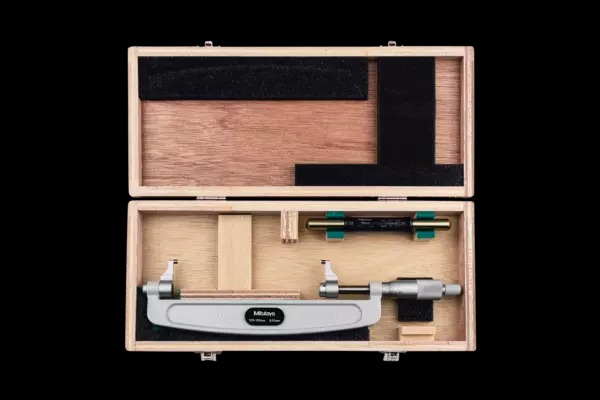

Additional Information	Digital/Analog: Analog Delivered: Including box, spanner, setting standard Inch-Metric: Metric Range: 125 – 150 mm Graduation: 0,01 mm Max.Permissible ErrorJ MPE: ±9 µm Flatness: 0,3 μm Parallelism: 5 µm Measuring face: Carbide-tipped, micro-lap finish Measuring spindle: ø8 mm, spindle pitch 0,5 mm Scale: Thimble and sleeve satin chrome finish, ø18 mm Measuring force: 1 – 6 N Mass: 450 g
