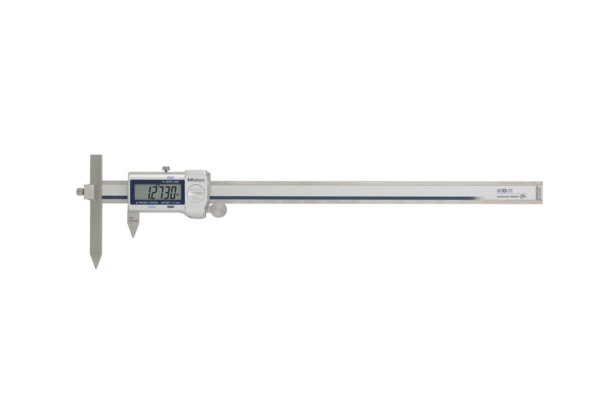

Mitutoyo CENTRELINE CALIPER 573-708-20

Description

The Mitutoyo 573-708-20 ABSOLUTE Digimatic Offset Centerline Caliper has the following specifications:

Range: .4-12″/10-300mm
Resolution: 0005″/0.01mm
Accuracy: +/- .0015
Mass: 320 (g)
Features:

Specially designed for center to center distance measurements on the same and offset planes.
Can also measure from edge to center.
Hole diameter should be in the range of 1.5mm-10mm (.06″-.4″).
With SPC data output. (series 573)
Unnecessary to wipe or clean the scale
Supplied in fitted plastic case.
Technical Data

ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Constructed of hardened stainless steel for better durability and longevity
Battery life: Approx. 3.5 years under normal use
Digital models Analog models
Function of Digital Model

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

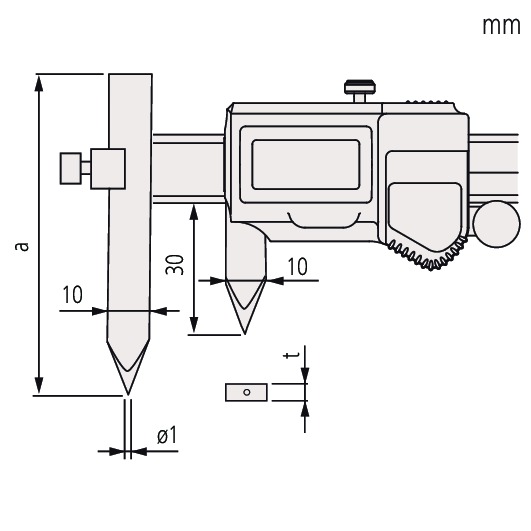

The Mitutoyo ABSOLUTE Digimatic Offset Centerline caliper features main scale jaws that adjust up and down to measure unlevel (different planes) center-to-center distances. The offset centerline caliper takes highly accurate center-to-center measurements and hole diameters of 1.55mm to 10mm. The centerline caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal on the shop floor.
