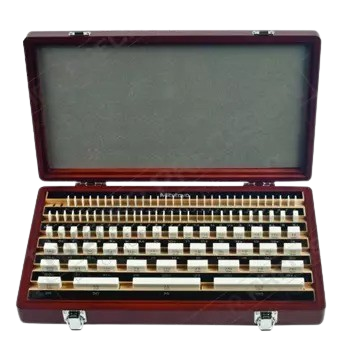

The Mitutoyo 516-354-26 rectangular ceramic gage block set has the following specifications:
Number of Blocks: 56 Pieces
Grade: 0
Material: Ceramic
The 56 Piece Rectangular Gage Block Set is made up of the following blocks:
1 Block: 0.5mm
9 Blocks: 1.001-1.009 (.001mm)
9 Blocks: 1.01-1.09mm (.01mm)
9 Blocks: 1.1-1.9mm (.1mm)
24 Blocks: 1-24mm (1mm)
4 Blocks: 25-100mm (25mm)
Features:
Ceramic blocks are adopted for frequently-used blocks. Ceramic gage blocks will last longer than steel gage blocks as well as not corrode.
Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
High-carbon, high-chrome steel provides high hardness and wear resistance
Rectangular base for accurate wringing
Nominal length indicated with laser-etched, black characters
Identification number etched in block for traceability
A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.
| barcode | |
|---|---|
| Additional Information | Set/Single Item: Set |
