Mitutoyo Ceramic Gauge Block 516-394-60

Product Code: 516-394-60

$11,175.58$10,159.62 Ex. GST

Product Code: 516-394-60 SKU 516-394-60 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

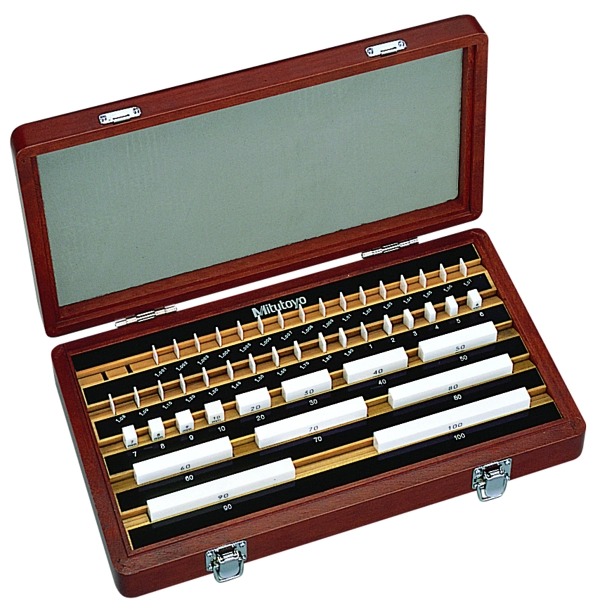

GAGE BLOCK SET CERAMIC (46)K 516-394-60 is a tool used for measuring instrument calibration standards. This tool is used as a measurement basis when measuring workpieces so as to produce high precision of the workpiece measurement value. This tool has various sizes so that calibration can be carried out according to the needs required. This ceramic gauge block set is used for calibrating sizes of 1.001-100 MM. Ceramic gauge block sets are often used in industry, factories, or workshops.
Type: Rectangular Set

BENEFIT:
Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry.
Selecting the best set, or sets, to acquire usually depends on the accuracy required by the target applications, the level of convenience desired (larger sets offer more combination possibilities) and the
environmental conditions in which they will be used.

Feature:
High Quality Material From Steel/Ceramic
with Suffix Number Contain Grad e and Standard
Include Inspection Certificate
Completed with wood packaging

Additional information

Weight 0.0000 kg
barcode
Additional Information

Inch-Metric: Metric
Type of Certificate: JCSS certificate
Delivered: In a wooden case with JCSS calibration certificate
Accuracy: EN ISO 3650
Grade: K
Material: Ceramic
Set configuration:
1.001-1.009 mm (0.001 mm step / 9 blocks)
1.01-1.09 mm (0.01 mm step / 9 blocks)
1.1-1.9 mm (0.1 mm step / 9 blocks)
1-9 mm (1 mm step / 9 blocks)
10-100 mm (10 mm step / 10 blocks)
Delivered: In a wooden case

Brand

Mitutoyo
