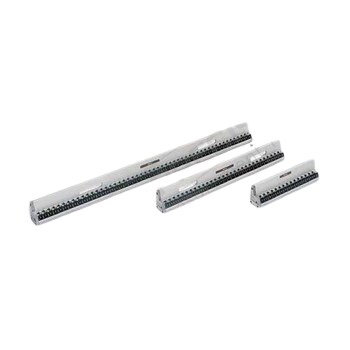

Mitutoyo Checkmaster 24″ 515-732

Description

The Mitutoyo 515-732 High-Accuracy Steel Check Master HMC-H has the following specifications:
Range: 24″
Type: Steel
Accuracy of Block Pitch 0-12″: +/- .000047″
Accuracy of Block Pitch 12-24″: +/- .000071″
Accuracy of Block Pitch 24-40″: +/- .000098″

Features:
Designed to check the accuracy of table movements of machine tools and calibrate CMMs. Permanently wrung stack of gage blocks is housed in a rigid frame.
Can be used in either vertical and horizontal orientation.
Fitted wooden case supplied.

Specifications for Ceramic Check Master:
Each measuring block is made of zirconia-based ceramic that requires no anti-corrosion treatment for measuring faces.
Free from deterioration and dimensional changes over time.
