Mitutoyo COMPARATOR STAND 215-150-10

Product Code: 215-150-10

$843.96$767.24 Ex. GST

Product Code: 215-150-10 SKU 215-150-10 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

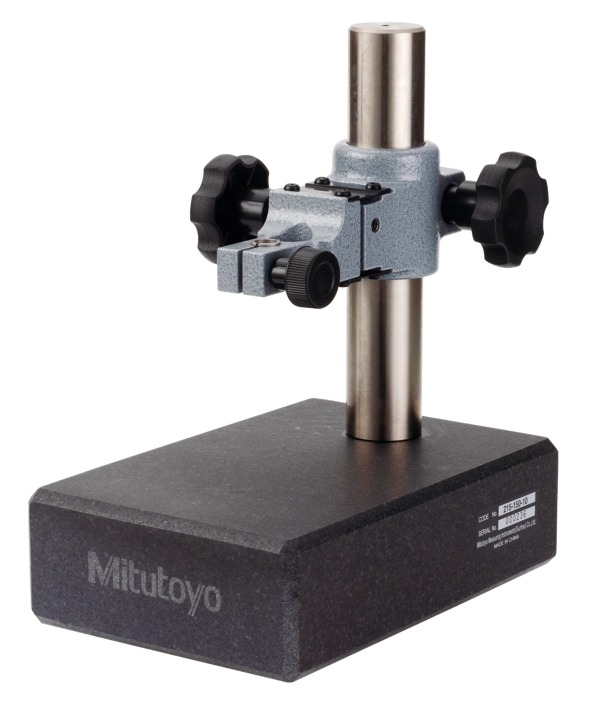

The Mitutoyo 215-150-10 Gauge Stand with granite base eliminates the need to hold gauges during an operation. The built-in clamp secures the gauge as the base keeps the whole group stable. The smooth granite is designed to prevent burrs from occurring and protect itself from corrosion.

Features:
Smooth granite base prevents corrosion and sharp imperfections
Sturdy design keeps gauges stable during measurement
Height is adjustable to accommodate more situations

Additional information

Weight 5.4000 kg
barcode
Additional Information

Column Ø: 30 mm
Max. Measurement Height: 120 mm
Fine Adjustment: 1 mm
Stem Hole Ø: ø 3/8" / 9.53 mm, 8 mm with bush (standard accessory)
Table Flatness: 3 µm
Perpendicularity Table-Stem Hole: 0.2/100 mm/mm
Delivered: With stem bush 9.53 mm (3/8") to 8 mm
Mass: 5.4 kg

Brand

Mitutoyo
