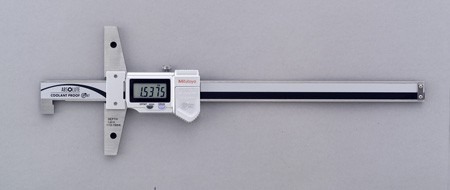

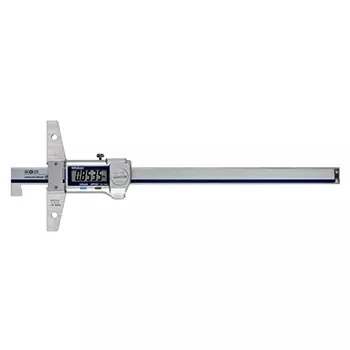

Mitutoyo DEPTH GAUGE .4″ TO 8.4″ 571-265-20

Description

The Mitutoyo 571-265-20 IP67 Absolute Digimatic Depth Gage with hook end has the following specifications:

Range: 0-8″/200mm
Resolution: .0005″/.01mm
Accuracy: +/- .0015″
Mass (g): 598
Features:

SPC Output
IP67 Protected
Display: LCD
Measuring force: 1.4N, 1.5N
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance (electromagnetic induction)* type linear encoder
Max. response speed: Unlimited
Battery: SR44
Battery life: Approx. 20,000 hours (3 years) under normal use
Dust/Water protection level: IP67
The Absolute Digimatic Depth Gages are some of the best quality depth gages available on the market today. The absolute digimatic series can keep track of the origin during the entire battery life so operators do not have to constantly close the jaws and zero out the gage. The measuring faces as well as the base is hardened and micro-lapped. Optional extension bases are available upon request.

Function:

Origin-set, Zero-setting, Automatic power on/off , Data output, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
