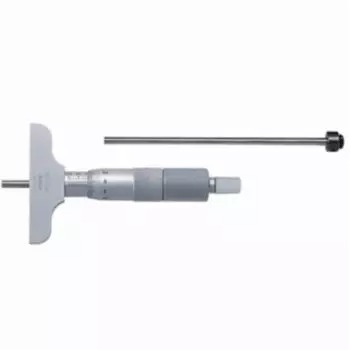

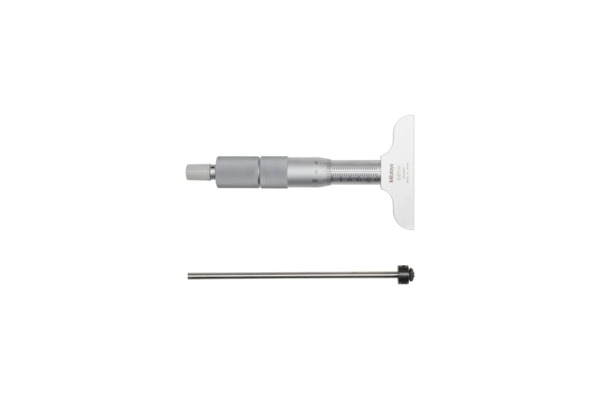

129-109 Mitutoyo Depth Micrometer: 0-50mm with 63.5mm Base
The Mitutoyo 129-109 depth micrometer has the following specifications
Range: 0-50mm
Graduations: .001″
Base Size: 63.5 x 16mm
Number of Rods Included: 2
Features:
Available in Metric and Inch models
Metric models available in ranges: 0-50mm, 0-100mm and 150mm
Inch models available in ranges: 0-4″, 0-6″ and 0-12″
Ranges are available in two different base lengths
Rod length can be adjusted in 1″/25mm increments
Rod diameters are .157″/4mm
Measuring rod clamps provide added measurement stability
Interchangeable measuring rods are lapped
Ratchet stop ensures greater repeatability among users

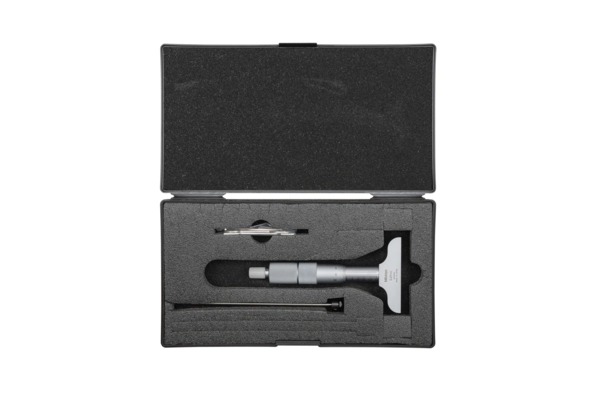

Supplied with a fitted plastic case
The Mitutoyo 129-109 depth micrometer with interchangeable rods measures a wide range of depths with high accuracy. A Vernier scale provides precise measurements in fine units. The Mitutoyo interchangeable rod type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The depth micrometer’s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.
| Weight | 0.2600 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
