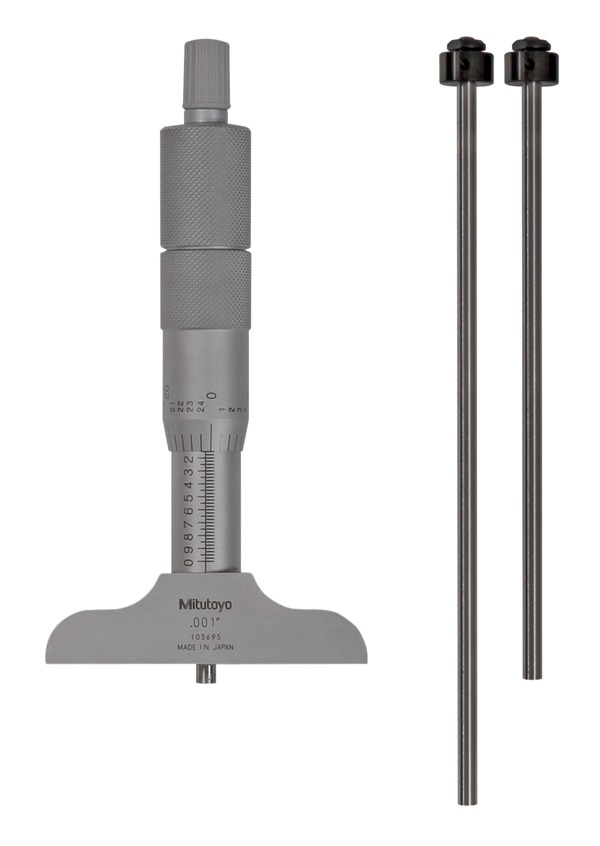

Mitutoyo Depth Micrometer A 129-126

Digital/Analog: Analog
Graduation: 0.001"
Inch-Metric: Inch
Range: 0 – 3"
Measuring Span: 25 mm
Spindle Pitch: 0.5 mm
Micrometer Head Feed (0-25 mm): ±3 µm
Zero Point Errors of Rods:±4 µm (0-150 mm)
±6 µm (0-300 mm)
Parallelism Base/Rod: (4 + L/50) µm (L = max. measuring length in mm)
Measuring Face: Hardened, precision ground, micro-lap finish
Base: Hardened tool steel

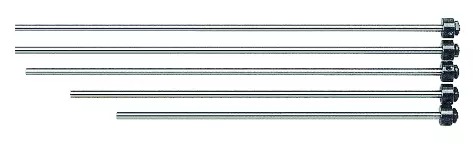

Number of Rods: 3
Scale: Thimble and sleeve satin chrome finish, ∅18 mm
Measuring Force: 5-10 N
Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass: 280 g
