Mitutoyo Depth Micrometer A 129-153

Product Code: 129-153

$639.78$581.62 Ex. GST

Product Code: 129-153 SKU 129-153 Categories ,

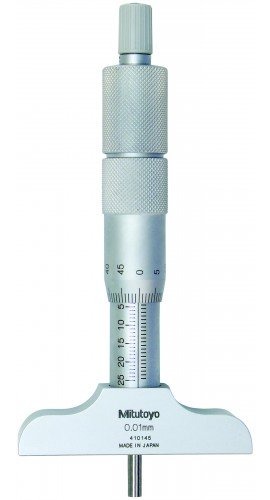

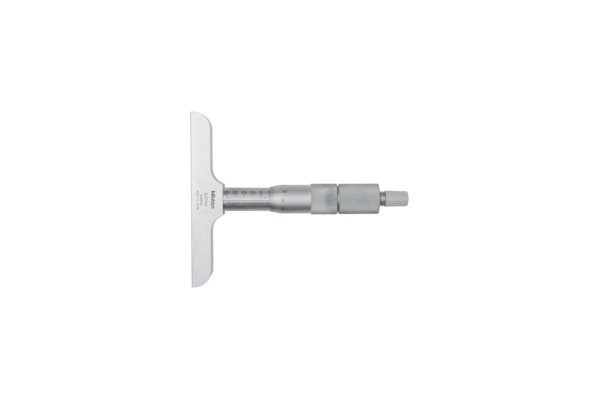

Mitutoyo Depth Micrometer A 129-153
Mitutoyo Depth Micrometer A 129-153 - Image 2
Mitutoyo Depth Micrometer A 129-153 - Image 3
Mitutoyo Depth Micrometer A 129-153 - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 100mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.

Additional information

Weight 0.6400 kg
barcode
Additional Information

Digital/Analog: Analog
Graduation: 0.01 mm
Inch-Metric: Metric
Measuring Span: 25 mm
Spindle Pitch: 0.5 mm
Micrometer Head Feed (0-25 mm): ±3 µm
Zero Point Errors of Rods: ±6 µm
Flatness Base: 2 µm
Flatness Rod: 0.3 µm
Parallelism Base/Rod: 10 µm
Measuring Face: Hardened, precision ground, micro-lap finish
Base: Hardened tool steel
Number of Rods: 12
Scale: Thimble and sleeve satin chrome finish, ∅18 mm
Measuring Force: 5-10 N

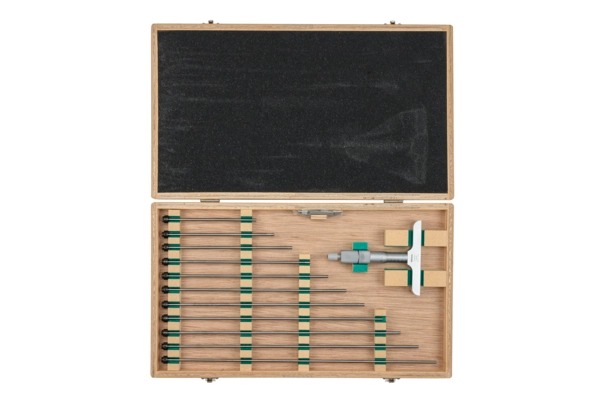

Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass: 640 g

Brand

Mitutoyo
