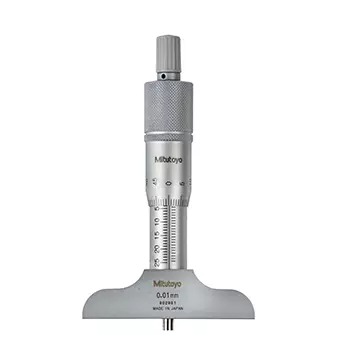

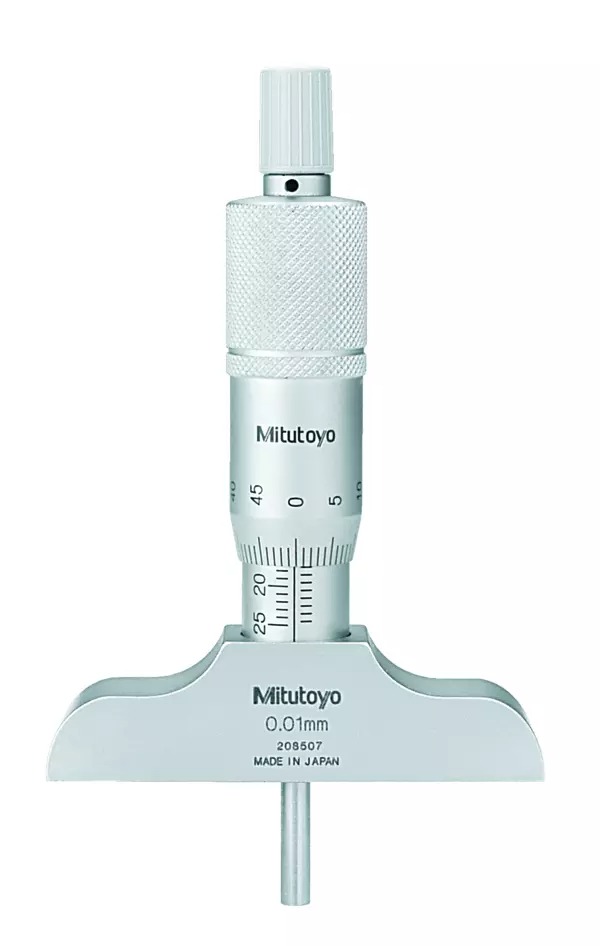

Mitutoyo Depth Micrometer B 128-103

Description

128-103 Mitutoyo Depth Micrometer: 0-25mm

The Mitutoyo 128-103 depth micrometer has the following specifications:

Range: 0-25mm
Graduations: .001″
Base Length: 63.5 x 16mm
Features:

Ratchet stop ensures greater repeatability among users
.157″/4mm diameter measuring rod
With measuring rod clamp.
Carbide-tipped measuring rod model is available in the metric versions
Technical Data:

Accuracy: +/- 3?m for micrometer head feed
Flatness of reference face: 1.3 microns for 63.5mm width base, 2 microns for 101.6mm width base
Flatness of measuring rod face: 0.3 microns
Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)
