$588.14$534.67 Ex. GST

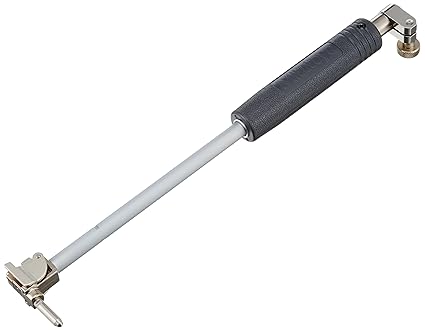

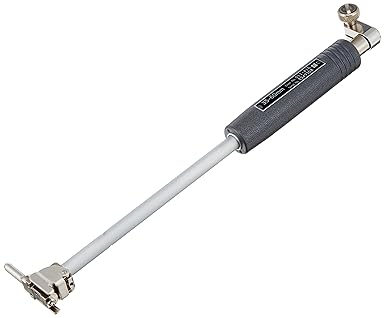

The Mitutoyo 511-416 dial bore gage for blind holes has the following specifications:
Range: 35-60mm
Graduations: No Dial Gage
Effective stroke of the contact rod: .0012mm
Anvils: 6
Spacers: 4
Features:
Available with or without a Mitutoyo Dial Indicator
Available in Inch and Metric models
Inch models have a graduation option of .0005” and .0001” as well as .01mm and .001mm
Optional extension rods are available to measure deeper bores and holes
Large, newly designed hollow grips are easier to hold and reduce heat transfer from the operator for better accuracy
Models with dial indicators are fully protected by a rugged cover
Gage stem diameter is .375” for inch and 8mm for metric
Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability

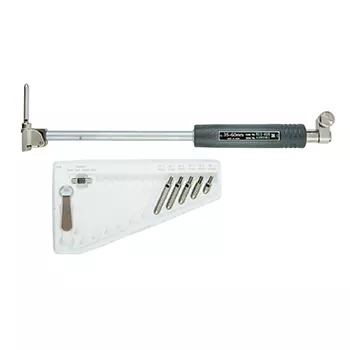

Includes various anvils and spacers depending on size of gage ordered

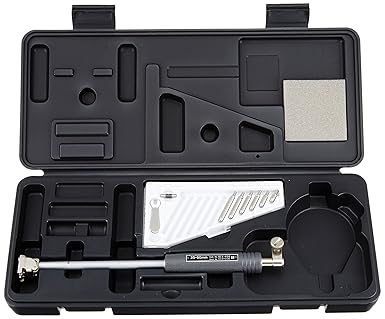

Supplied in a fitted plastic case
Mitutoyo’s blind hole bore gages measures ID at position close to the bottom of holes with high accuracy to .00016″ or .004mm. The Mitutoyo blind hole bore gage is ideal for measuring the inner dimensions at the bottom of blind bores and holes. Interchangeable anvils constructed of alloy steel allow for measurements of a wide range of bore diameters. A pendulum guide structure offers the ability to slide the gage for easier measurements without sacrificing accuracy. A two-point contact system detects geometry anomalies such as ovalness and taper.
| barcode | |
|---|---|
| Additional Information | Measuring Range (mm): 35-60 |
