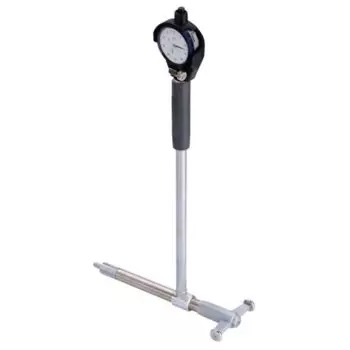

Mitutoyo DIAL BORE GAUGE 511-725-20

Product Code: 511-725-20

$921.24$837.49 Ex. GST

Product Code: 511-725-20 SKU 511-725-20 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Inch-Metric: Metric
Range: 160 – 250 mm
Graduation: 0.001 mm
Stroke of contact point: 1.6 mm
Measuring depth: 250 mm
No. Dial Indicator: 2109AB-10
Number of anvils: 6
Accuracy: 2 µm
Repeatability: 0.5 µm
Digital/Analog: Analog

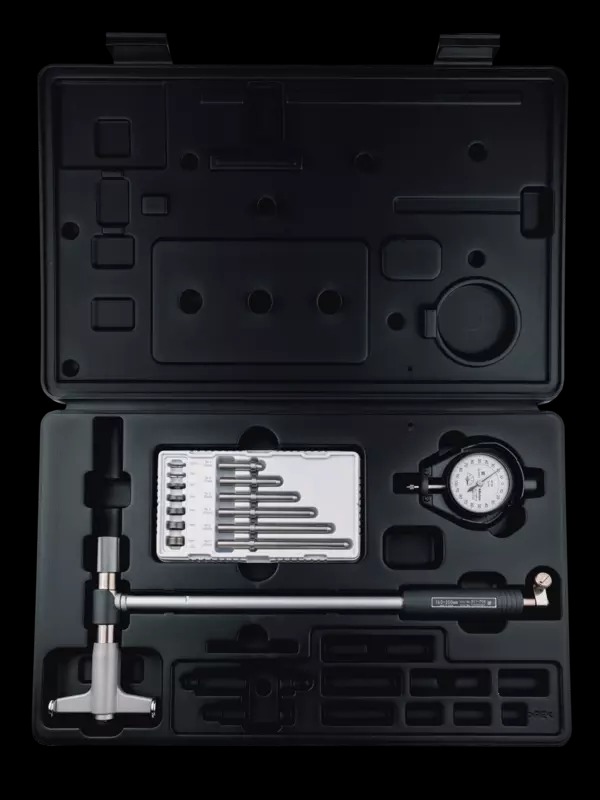

Delivered: In a box with bore gauge 511-705, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 6 anvils, 7 interchangeable washers
Mass: 850 g

Additional information

Weight 0.8500 kg
barcode
Additional Information

Inch-Metric: Metric
Range: 160 – 250 mm
Graduation: 0.001 mm
Stroke of contact point: 1.6 mm
Measuring depth: 250 mm
No. Dial Indicator: 2109AB-10
Number of anvils: 6
Accuracy: 2 µm
Repeatability: 0.5 µm
Digital/Analog: Analog
Delivered: In a box with bore gauge 511-705, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 6 anvils, 7 interchangeable washers
Mass: 850 g

Brand

Mitutoyo
