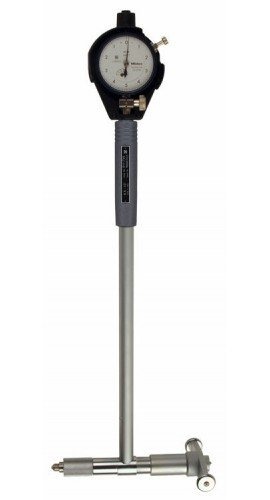

Mitutoyo DIAL BORE GAUGE 511-753-20

Description

The Mitutoyo 511-753-20 Standard Type Dial Bore Gage has the following specifications:
Range: 2-6″
Graduations: .0001″
Number of Anvils: 11 (2″ Sub Anvil)
Number of Spacers: 4

Features:
Available with a Mitutoyo Dial Indicator
Available in Inch models
Optional extension rods are available to measuring deep hole with accuracy
Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
Fully protected by a rugged cover (except models that do not include an indicator)
Gage stem diameter is .375″
Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
Supplied in a fitted plastic case

Technical Data:
Technology: Mechanical
Contact Point: Carbide Tipped
Units: Inch
Accuracy: 0.00008″
Repeatability: 0.00002″
Adjacent Error: 0.00004″
Stem Diameter: 3/8″
With Dial Gage Protective Cover (21DZA000): Yes
The Mitutoyo 511-753-20 standard type bore gage features interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with a Mitutoyo Dial Indicator. The Mitutoyo standard type bore gage is available in several different inch ranges to measure inside bore diameters with accuracy to .00008″. The bore gage comes with interchangeable anvils to measure different bore diameters with the same gage. A pendulum guide structure permits the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as roundness and taper. Mitutoyo offers a complete selection of Bore Gages. The 511 series bore gages come standard with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
