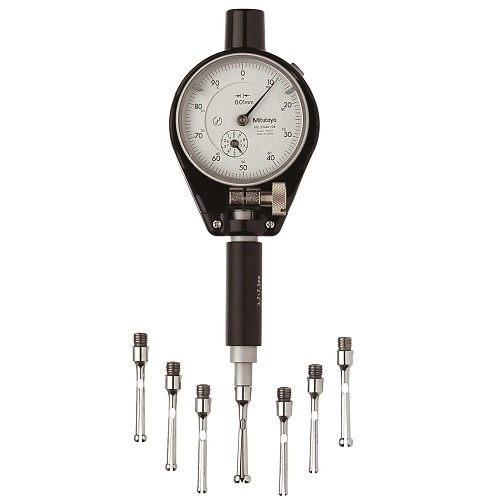

Mitutoyo DIAL BORE GAUGE 526-175-11

Product Code: 526-175-11

$5,194.48$4,722.25 Ex. GST

Product Code: 526-175-11 SKU 526-175-11 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This is a two point split contact point ideally suited to smaller bore measurements.
It offers you the following benefits:
A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm).
You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need.
The contact point is hard chrome coated.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Repeatability: 2 µm
Delivered: In a box, without dial indicator and cover for dial indicator, with setting ring
Measuring Range: 0.037 to 0.061"
Number of Anvils: 5
Number of Needles: 1
Probe Depth (D): 0.453"
Setting Rings: 5

Brand

Mitutoyo
