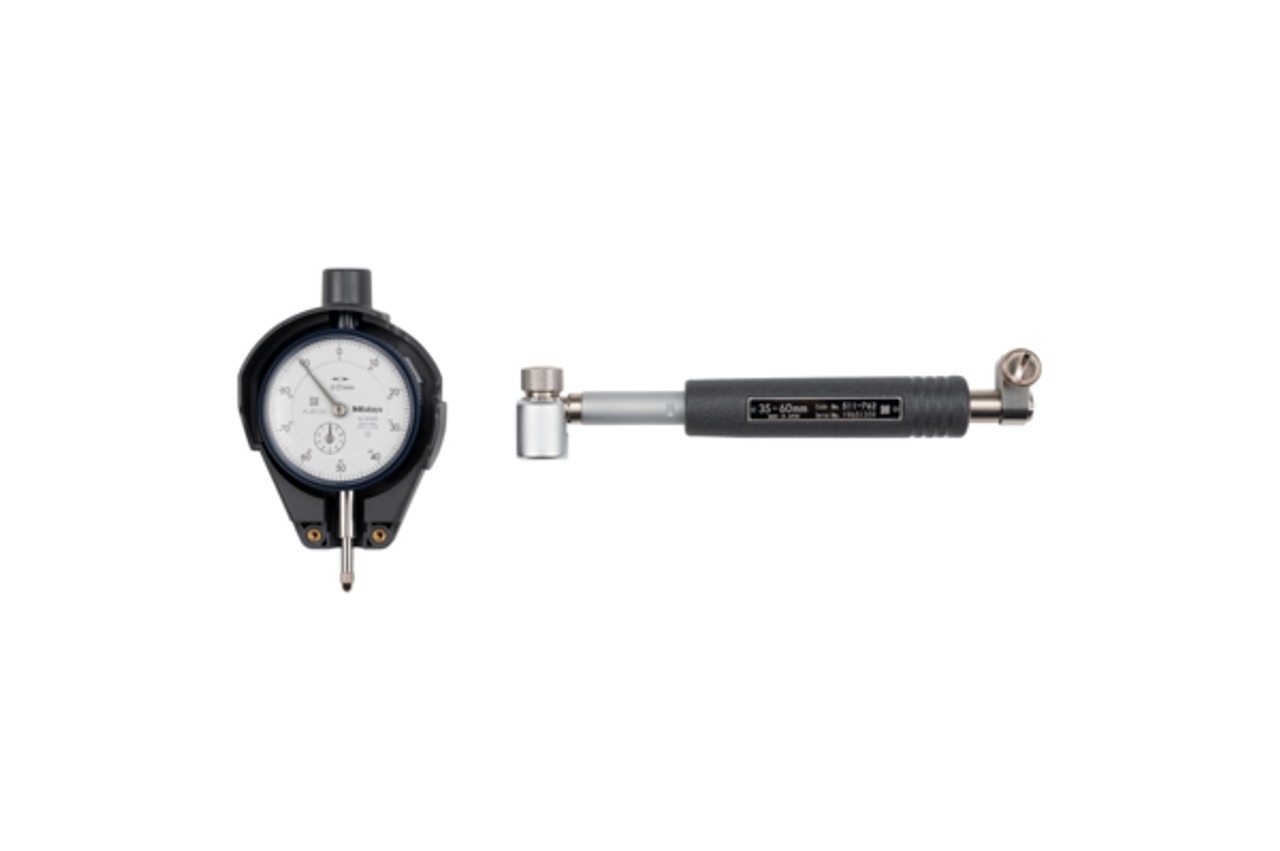

Mitutoyo Dial Bore Gauges 511-767

Product Code: 511-767

$516.62$469.65 Ex. GST

Product Code: 511-767 SKU 511-767 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This is a compact and lightweight bore gauge due to the short length below the grip.
It offers you the following benefits:
A long plunger stroke gives you amazing accuracy.
Contact points are carbide giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Range: 35 – 60 mm
Graduation: 0.01 mm
Stroke of contact point: 18 – 60 mm: 1.2 mm, 50 – 160 mm: 1.6 mm
Accuracy: 2 µm
Repeatability: 0.5 µm
Number of anvils: 6
Measuring depth: 50 mm
No. Dial Indicator: 2046AB

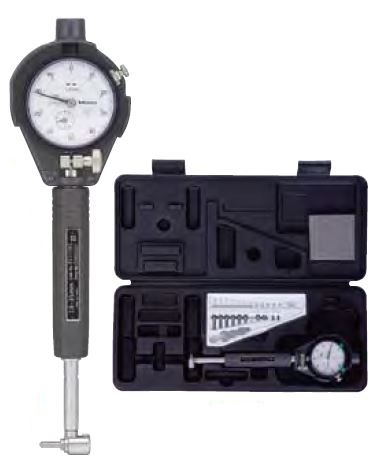

Delivered: Including box, dial indicator, plastic cover for indicator
Digital/Analog: Analog
Inch-Metric: Metric

Brand

Mitutoyo
