Mitutoyo Dial Bore Gauges 511-772

Description

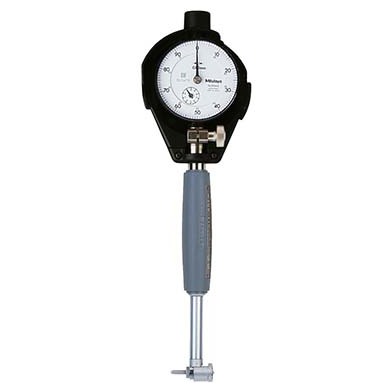

Mitutoyo 2-Point Inside Bore Gage for Short Length, 35-60mm – 511-772

This is a compact and lightweight bore gauge due to the short length below the grip.
It offers you the following benefits:
A long plunger stroke gives you amazing accuracy.
Contact points are carbide giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.

Technical Data:
Accuracy: 2μm / .00008”
Indication stability: 1μm / .00004”
Graduation: 0.01mm, 0.001mm, .0005” or .0001”
