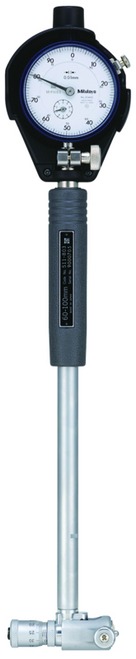

Mitutoyo Dial Bore Gauges 511-824

Description

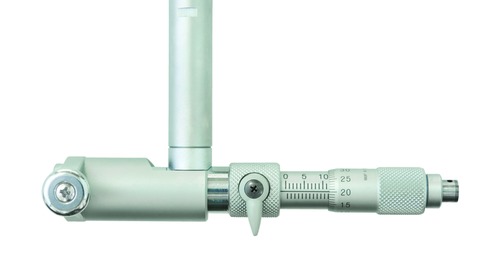

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Technical Data:
Accuracy: 2μm / .00008”
Indication stability: 1μm / .00004”
Graduation: 0.01mm, 0.001mm, .0005” or .0001”
