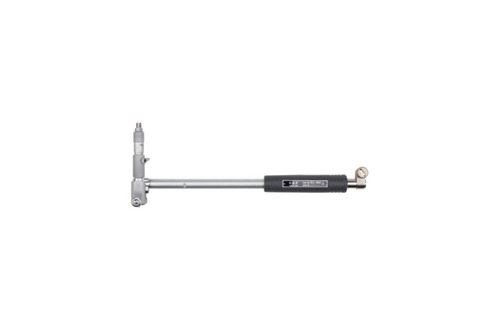

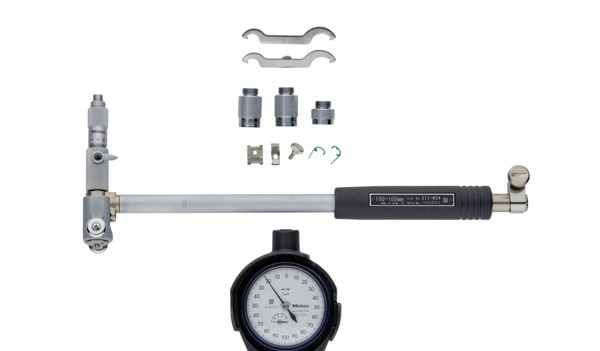

Mitutoyo Dial Bore Gauges 511-844

Product Code: 511-844

$1,049.79$954.35 Ex. GST

Product Code: 511-844 SKU 511-844 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

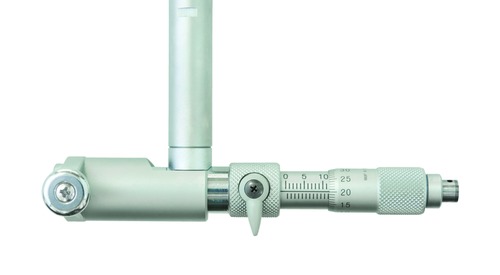

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch
Range: 4 – 6.4 "
Graduation: 0.0005"
Measuring depth: 6"
No. Dial Indicator: 2922AB
Micrometer
Head stroke: 0.5"
Accuracy: 2 µm
Repeatability: 0.5 µm
Sub anvils: 0.4, 0.8, 0.8"

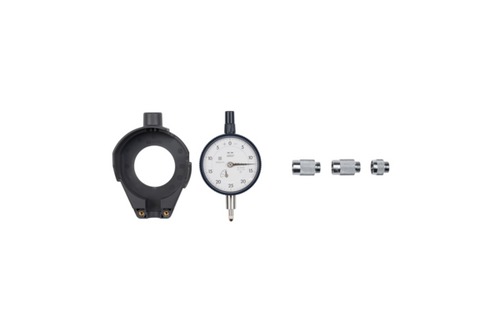

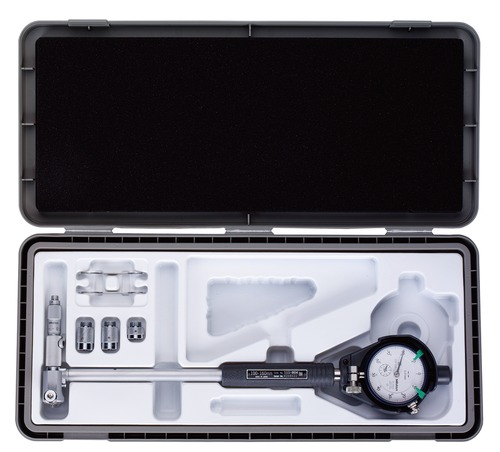

Delivered: Including box, dial indicator, plastic cover for indicator

Brand

Mitutoyo
