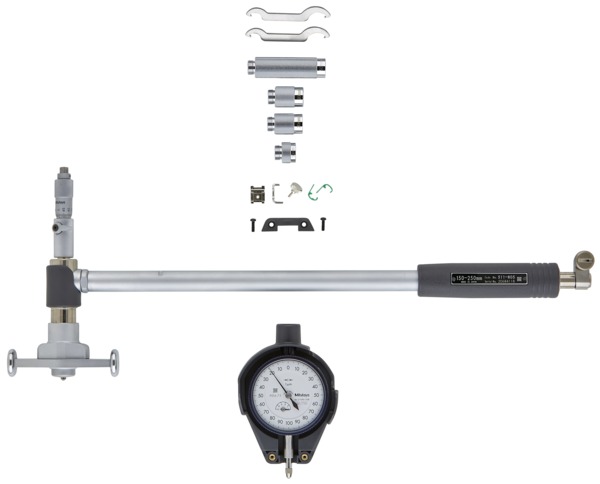

Mitutoyo Dial Bore Gauges 511-845

Product Code: 511-845

$1,206.83$1,097.12 Ex. GST

Product Code: 511-845 SKU 511-845 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Now with a longer plunger stroke while keeping original precision, the micrometre head is mounted to the anvil for convenient and accurate dimensional setup. The contact point is made of carbide, which ensures long-term durability and resistance to wear. A big grip with a sponge-like construction aids high-accuracy measuring by reducing heat transmission from the operator’s hand by 50%. Sub-anvils provide a wide measurement range. For measuring deep holes, extension rods can be added as an option. An optional inside-length standard, such as a setting ring or Inside Micro Checker.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Data Output: No
Display Type: Non-digital
Accuracy: 2 μm / 0.00008"
Range: 6.0 – 10.0"
Measuring Units: Inch
Graduations: 0.0005"
Probe Depth: 10"

Brand

Mitutoyo
