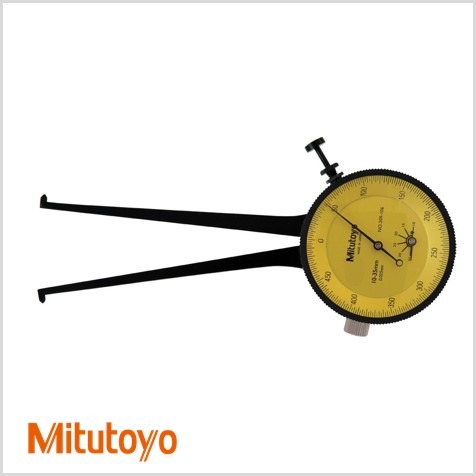

Mitutoyo DIAL CALIPER 209-106

Product Code: 209-106

$544.24$494.76 Ex. GST

Product Code: 209-106 SKU 209-106 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Caliper is spring loaded and makes point contact at constant measuring pressure.
Moveable bezel/graduation plate must be adjusted before gaging by bringing the zero point to a known size.
Block-oxide finish caliper arms have .04 inch diameter steel ball on the measuring tips.
Chrome-plated housing and bezel.
Chrome-plated housing and bezel.
With revolution counter.
Measures hard to get at ID’s.
Supplied with fitted carrying case.

Additional information

Weight 0.0000 kg
barcode
Additional Information

Range: 10-35 mm
Graduation: 0.025 mm
Accuracy: ±.004 mm
Dimensions: 4.8 x 2.3 and 4.8 x 2.3 mm

Brand

Mitutoyo
