Mitutoyo DIAL CALIPER 209-118

Product Code: 209-118

$755.54$686.85 Ex. GST

Product Code: 209-118 SKU 209-118 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

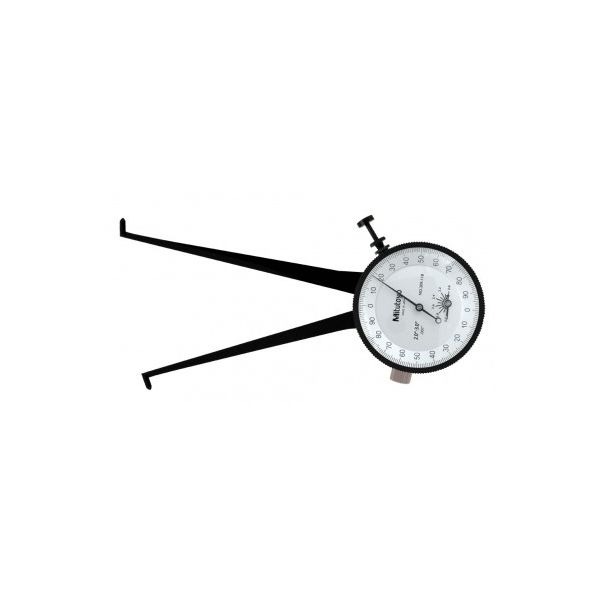

The Mitutoyo 209-118 Series 209 Internal Dial Caliper Gauge can be used with a setting ring or micrometer as an accurate comparison gauge. It features a spring-loaded design, which provides pressure for optimal performance in point contact measuring.

Features:
Designed for use as a comparison gauge along with other instruments
Spring-loaded design provides pressure for point contact measuring
Offers a repeatability of 0.001″

Additional information

Weight 0.0000 kg
Dimensions
barcode
Additional Information

Product Width: 2" (50 mm)
Display Type: Dial
Product Type Compatibility: Setting rings, micrometers
Accuracy: 0.003"
Graduation Measurements: Inches
Power Source: Non-powered
Metric/SAE: SAE
Measurement Range: 2 to 3" with 0.001" graduations
Color: Silver
Measuring Force (N): 2 N or less

Brand

Mitutoyo
