Mitutoyo DIAL CALIPER 505-732

Product Code: 505-732

$231.72$210.65 Ex. GST

Product Code: 505-732 SKU 505-732 Categories DIAL CALIPER, MEASUREMENT

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

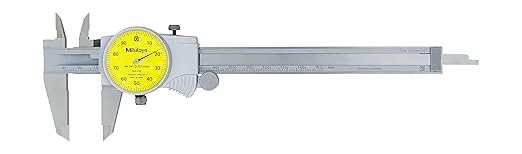

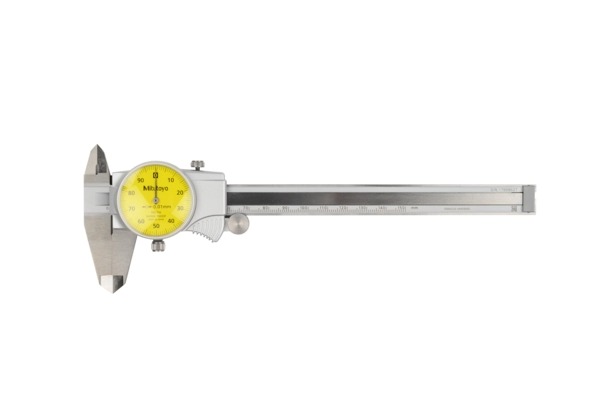

Mitutoyo 505-732 Dial Caliper has a measuring range of 0-150mm with 1mm Per One Revolution. This model features improved finish on sliding surfaces for longevity and easier-to-read font. High shock protection. Equipped with a lock screw for dial bezel and holding the sliding jaw position.

Additional information

Weight	0.1760 kg
Dimensions	Length 3.71cm x Width 11.91cm x Depth 27cm
barcode

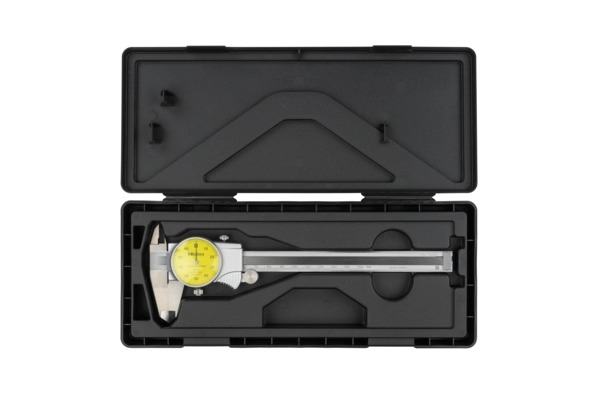

Additional Information	Delivered: Including plastic box Graduation: 0.01 mm, 1 mm/rev Depth bar: Flat Max. Permissible Error E MPE: ±0.02 mm Max. Permissible Error S MPE: ±0.04 mm Mass: 176 g
