$490.81$446.19 Ex. GST

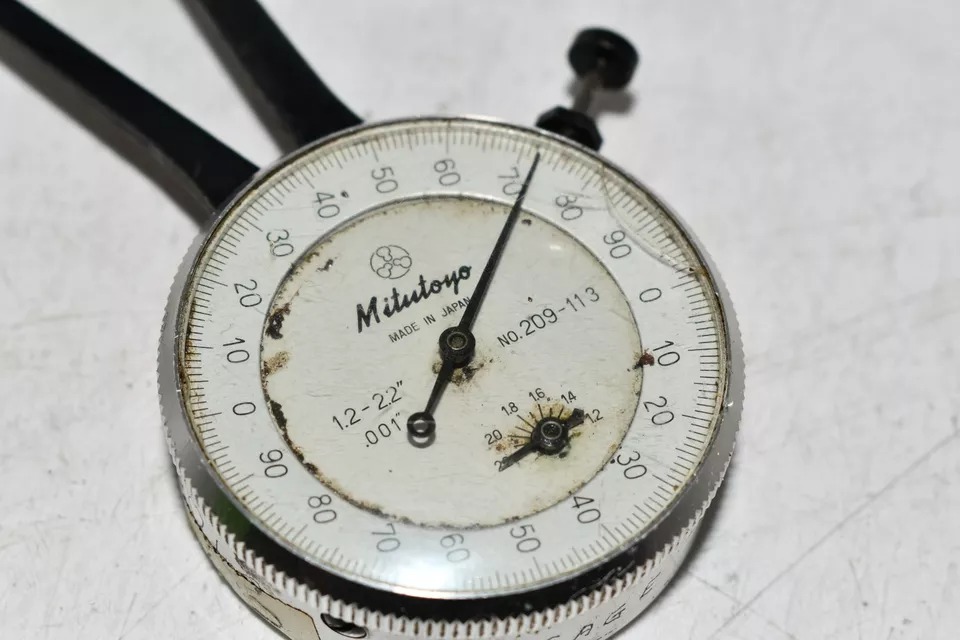

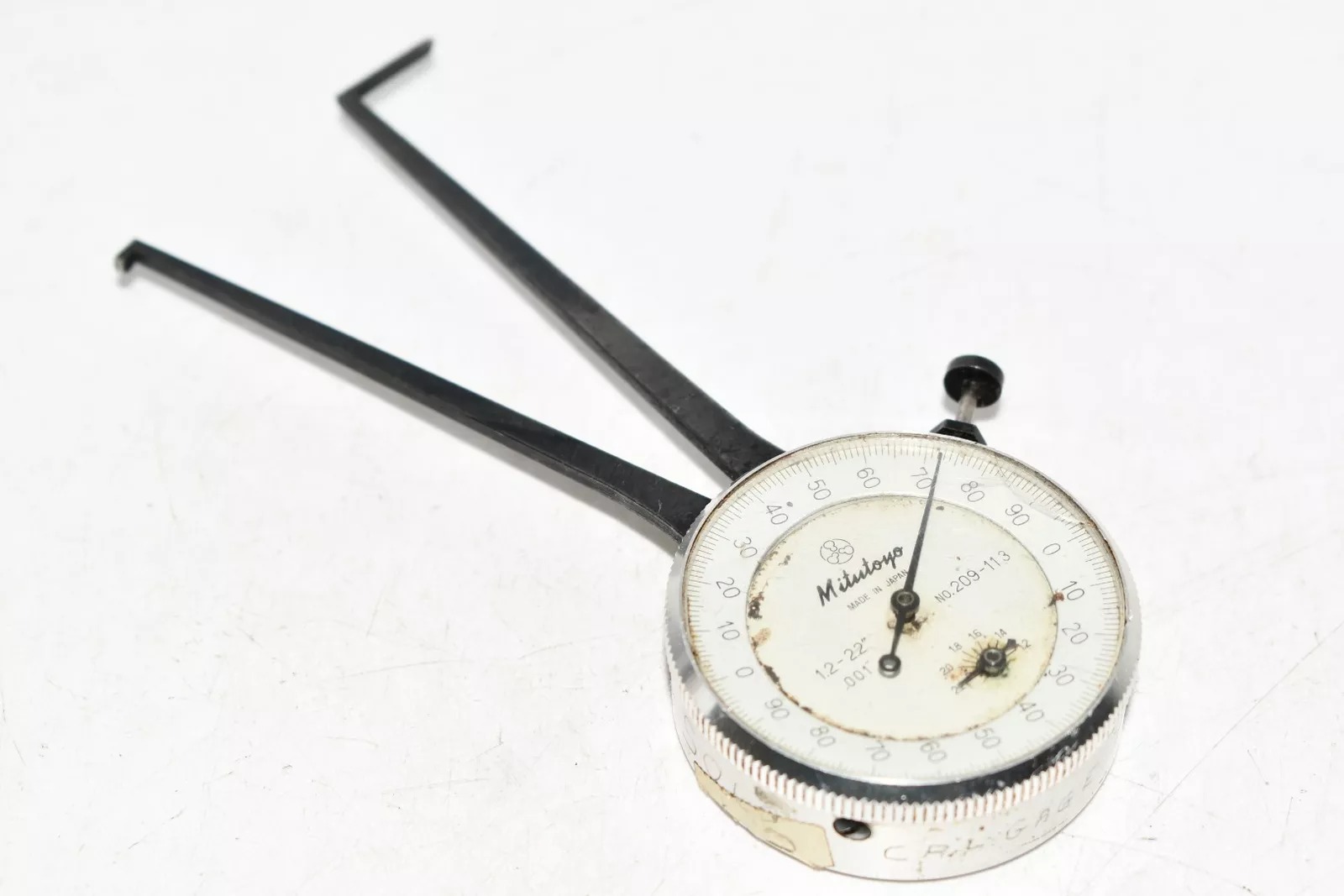

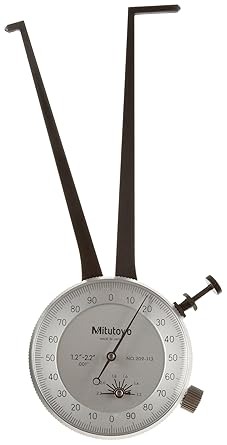

The 209-113 caliper gage has a dial with a white face, weighs 0.18 lbs, measures in inches, and is graduated in 0.001″ increments. It has black oxide finished arms with 0.04″ diameter steel ball measuring tips and a chrome-plated bezel. Its fixed arms take inner diameter (ID) measurements. It has a dial height of 51 mm and measuring tip lengths 17 mm and 6.8 mm (far side) and 14.5 mm and 4.3 (dial side). Range is 1.2″ – 2.2″, graduation is 0.001″, and throat depth is 3.15″.
Inch measuring dial, for readability
Internal (ID) measurement capability, for the ability to reach up to 3.25″
Spring-loaded caliper makes point contact at constant measuring pressure, for quick comparison measurements
Black oxide finished arms with 0.04″ diameter steel ball measuring tips, for corrosion resistance and consistent readings over the entire range
Revolution counter for ease of measurement
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information |
