$1,028.01$934.55 Ex. GST
The Mitutoyo 209-921 External Dial Caliper Gage has the following specifications:
Range: 0-50mm
Graduation: 0.05mm
Accuracy: +/- 0.05mm
Max. Measuring Depth L: 167mm
Length Hb: 30mm
Measuring Contact Type: S
Size: Chise; R0.75mm
Mass: 490g

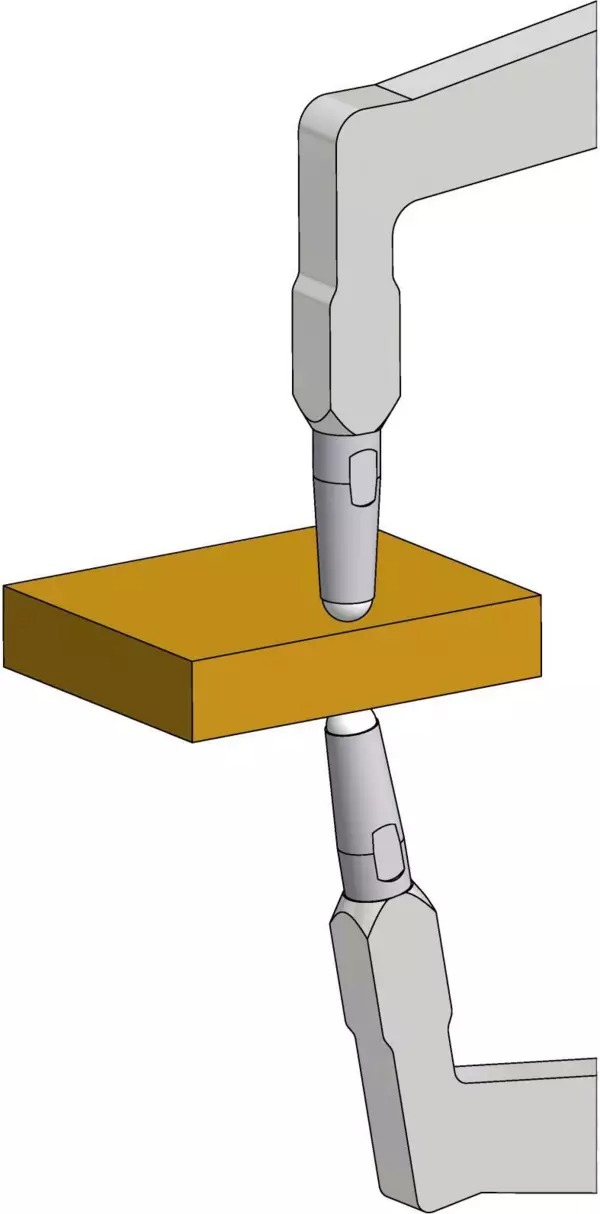

Types of Contacts Upper/Lower:
S: R 0.4 / R 0.4
K/K: 2mm Ball /2mm Ball or 1mm Ball / 1mm Ball
R/S: R 0.4 / 1.5mm Diameter Carbide Ball
RK/K: 1.5mm Ball / 1.5mm Ball
S/R: R 0.75 / 2mm Ball
R: 2mm / 2.5mm Ball
T: 6mm Disc
PR: 2mm Diameter / R 0.5
PK: 2mm Diameter / Chisel R 0.5

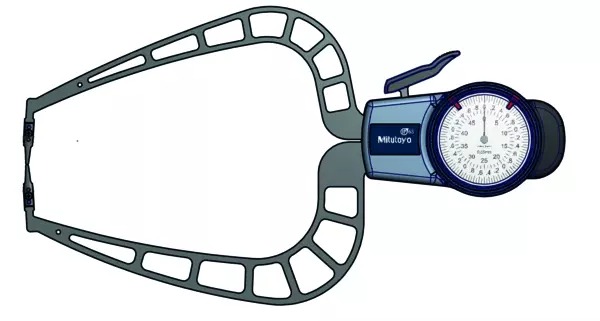

The Mitutoyo external dial caliper gage utilizes spring-loaded jaws to provide constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
209-921 Features:
Available in Metric and Inch models
Available in ranges up to 2″/50mm
Available with different types of jaws for various application needs
Indicator should be used in conjunction with a setting ring or micrometer
White dial face for easier, precise measurement readings
Crystal is glare-free with a scratch-resistant coating
IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
Supplied in a fitted plastic case
| Weight | 0.4300 kg |
|---|---|
| barcode | |
| Additional Information | Inch-Metric: Metric |
