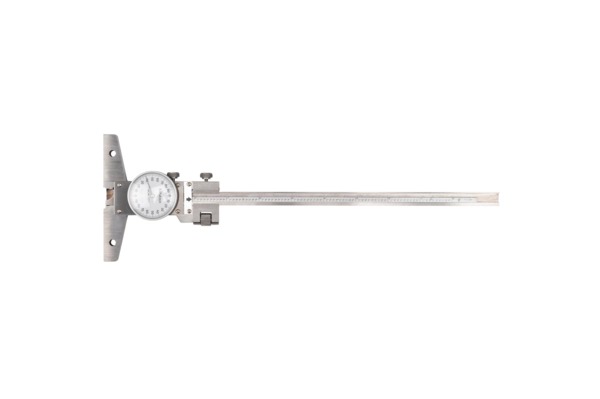

Mitutoyo Dial Depth Gage A 527-312-50

Product Code: 527-312-50

$559.27$508.43 Ex. GST

Product Code: 527-312-50 SKU 527-312-50 Categories Dial Depth Gage A, MEASUREMENT

Mitutoyo Dial Depth Gage A 527-312-50 - Image 2

Mitutoyo Dial Depth Gage A 527-312-50 - Image 3

Mitutoyo Dial Depth Gage A 527-312-50 - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The 527-312-50 Mitutoyo Dial Depth Gage has the following specifications:

Range: 0-8″
Graduations: .001″
Accuracy: +/- .001″
Base Length: 3.94″/100mm
Mass: 300g
Features:

Made of hardened stainless steed.

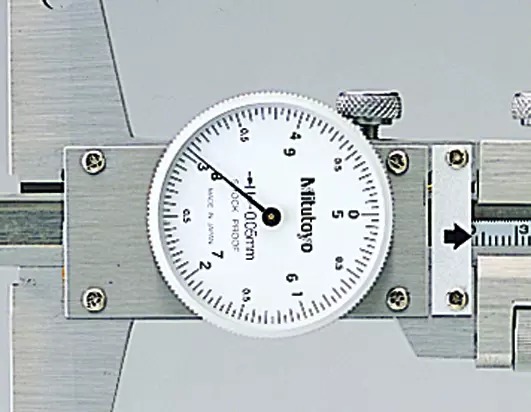

Easier and faster reading of dial.
Base and measuring faces are hardened and micro-lapped.

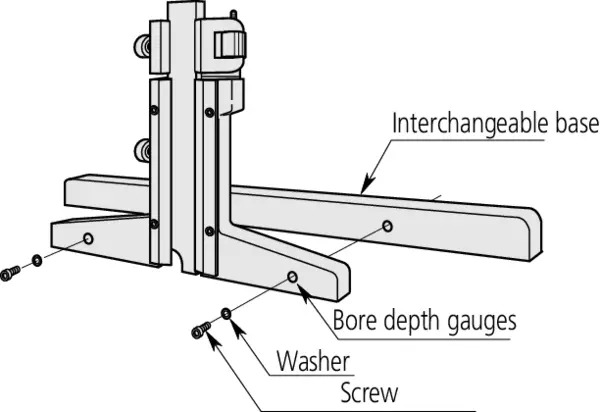

Optional wider extension base are available.

Additional information

Weight	0.3000 kg
Dimensions	Length 31cm x Width 10cm x Depth 0.65cm
barcode
Additional Information	Digital/Analog: Analog Graduation: 0,001" Inch-Metric: Inch Range: 0 – 8 " Base size: 100 x 6.5 mm (W x T) mm L: 310 mm Delivered: In a box Mass: 300 g
