$417.44$379.49 Ex. GST

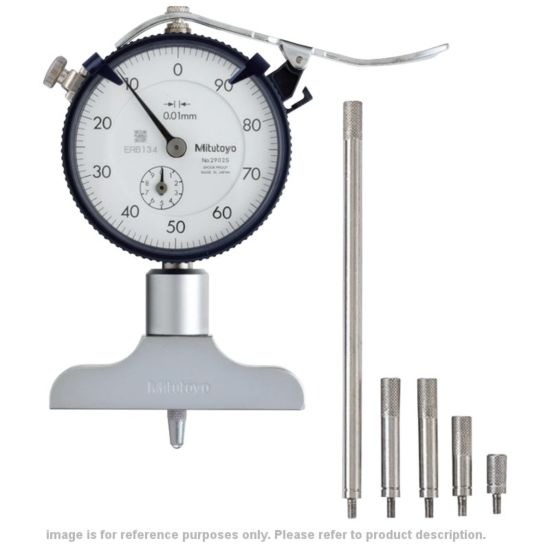

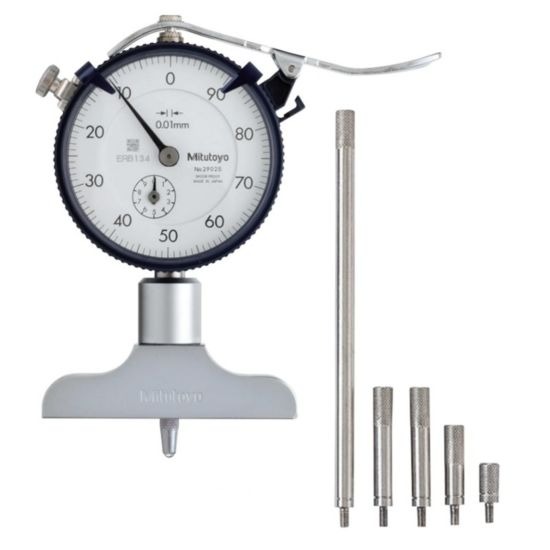

The Mitutoyo Series 7200 Dial Depth Gauges, Indicator Type, Metric, depending on the model, have a measurement range of 0 to up to 210mm; a stroke (or travel distance of the indicator) of 5mm, 10mm, or 30mm; a resolution (or smallest graduation interval) of 0.01mm; with up to + or – 0.015mm of accuracy. The dial gauge interface provides precise and easily readable measurements. All units except model 7210 include extension measuring rods for flexibility. Models 7210 and 7222 have a carbide-tipped ball point for precise measurements. The bases of the units are available in both elongated and rounded designs. The bottom of the bases are hardened, ground, and lapped for durability and accuracy. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.
Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.
Measurement range for series of 0 to up to 210mm; stroke of 5mm, 10mm, or 30mm; and resolution of 0.01mm
Dial gauge provides precise and easily readable measurements in fine units
Most units include three to five extension rods, depending on the model, for flexibility
Certain models have carbide-tipped ball point for durability and accuracy
Bottom of base is hardened, ground, and lapped for durability and accuracy
| Weight | 0.2950 kg |
|---|---|

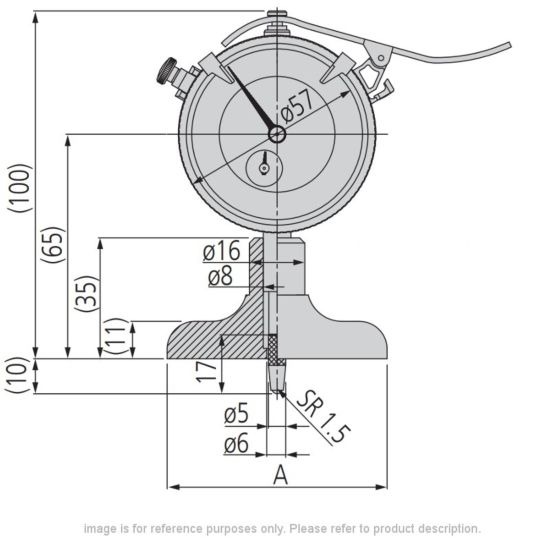

| Dimensions | Length 11.99cm x Width 10.01cm x Depth 5cm |
| barcode | |
| Additional Information | Range: 0 – 200 mm |
