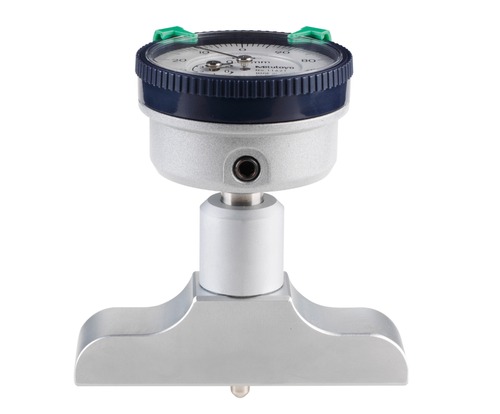

Mitutoyo Dial Depth Gauge 7231

Product Code: 7231

$470.98$428.16 Ex. GST

Product Code: 7231 SKU 7231 Categories Dial Depth Gauge, MEASUREMENT

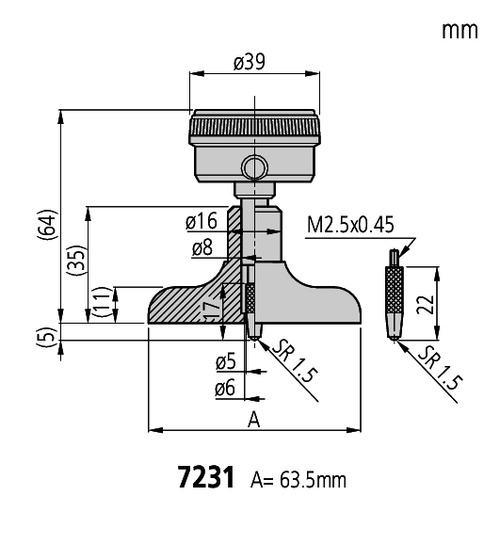

Mitutoyo Dial Depth Gauge 7231 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Measurement Industry Tool Standard
721-type dial depth gauge.
Ideal for measuring the depth of holes or narrow grooves, and difference in levels.
[Probe Material] Carbide

Additional information

Weight	0.2000 kg
barcode
Additional Information	Range: 0 – 200 mm Accuracy: ±0.015 mm Base flatness: 5 μm Base (WxT): 63.5 x 16 mm Graduation: 0.01 mm Mass: 200 g Stroke: 5 mm Probe tip: Ball, R = 1.5 mm (No. 21JAA224) Digital/Analog: Analog Inch-Metric: Metric
