Mitutoyo DIAL INDICATOR 1003A

Description

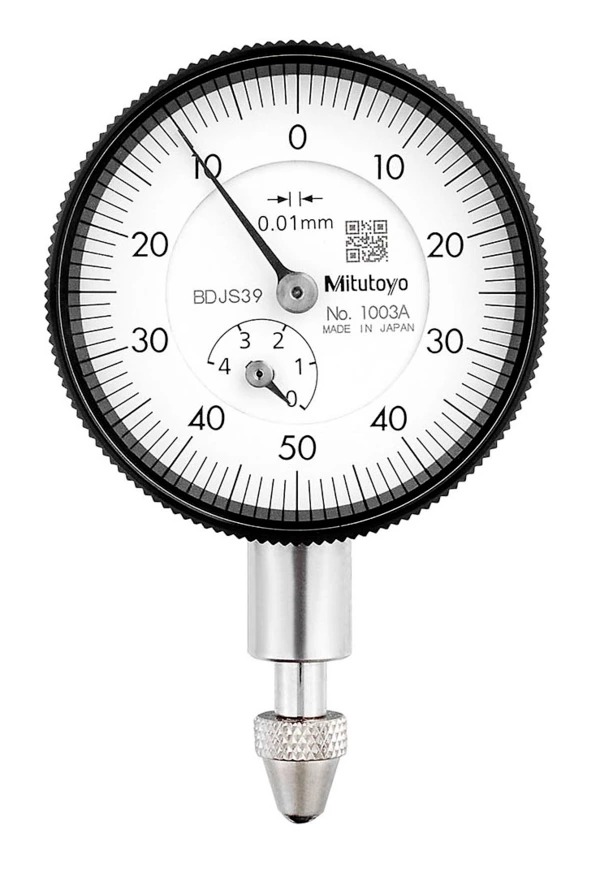

The Mitutoyo 1003A Series 1 Compact Type Dial Indicator has the following specifications:

Range: 0-4mm
Graduations: 0.01mm
Range/Rev: 1mm

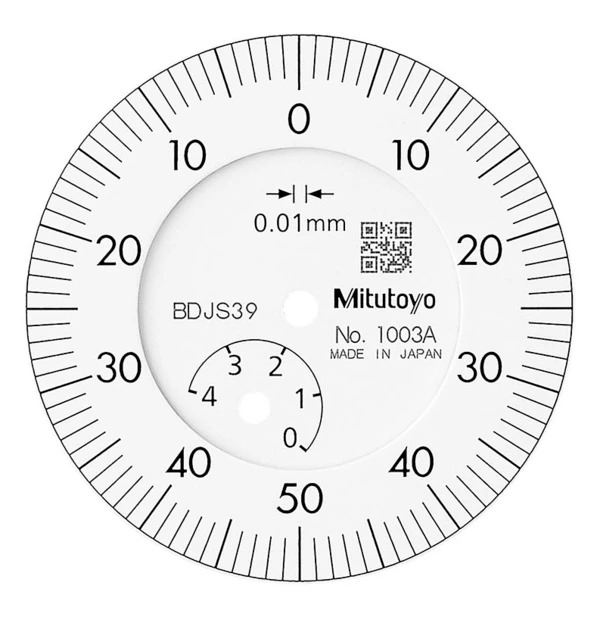

Dial Reading: 0-50-0
Type: with lug
Accuracy (First 2.5 Rev): +/- 0.01mm
Accuracy (Overall): +/- 0.013mm
Measuring Force: 1.5N or less
Stem/Shank: 8mm
Contact Point: M2.5 x 0.45 Thread
Type: ISO/JIS
Shockproof Type: N
Waterproof Type: N
Jeweled Bearing Type: N
The Mitutoyo compact, multi-revolution dial indicator is ideal for comparison measurement on applications with limited space. Conforms to JIS/ISO standards. The compact design of the Mitutoyo Series 1 dial indicator allows for use in tighter, restricted spaces. The jeweled bearing provides great wear resistance and low friction movements for smooth, precise operations. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.

Features:
Revolutionary stem-bush design for trouble-free stem clamping (longer clamping range)
Metric or Inch models available
Available in several different ranges and graduations
Offered with flat back or lug back for mounting purposes
Includes green limit markers
Thumb screw bezel lock is easy-to-use for zeroing
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
The indicator is anti-magnetic for better accuracy around metals
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet JIS/ISO standards
Supplied in a fitted plastic case
Part numbers that contain a “B” means they include
